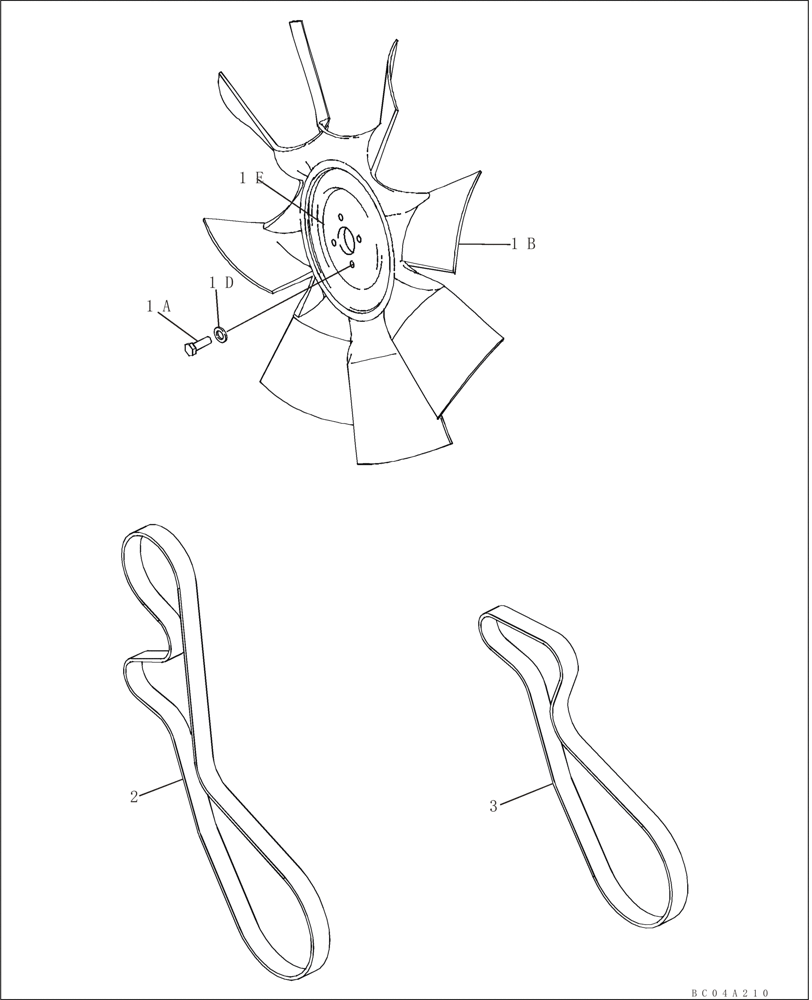

Запчасти Case 721D (02-03) - FAN - BELT (02) - ENGINE

1

8500471

FAN

Incl. 1A - 1E

1шт.

1a

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

1b

8602420

FAN

32 in. Blade

1шт.

1c

8602953

DECAL

Engine Side; Not Illustrated

1шт.

1d

8602955

WASHER

4шт.

1e

8604700

HUB

1шт.

2

8602679

BELT,1688.00 mm L

With Air Conditioning

1шт.

3

FAR8602680

BELT,1230.00 mm L, 8 Ribs

Without Air Conditioning

1шт.
