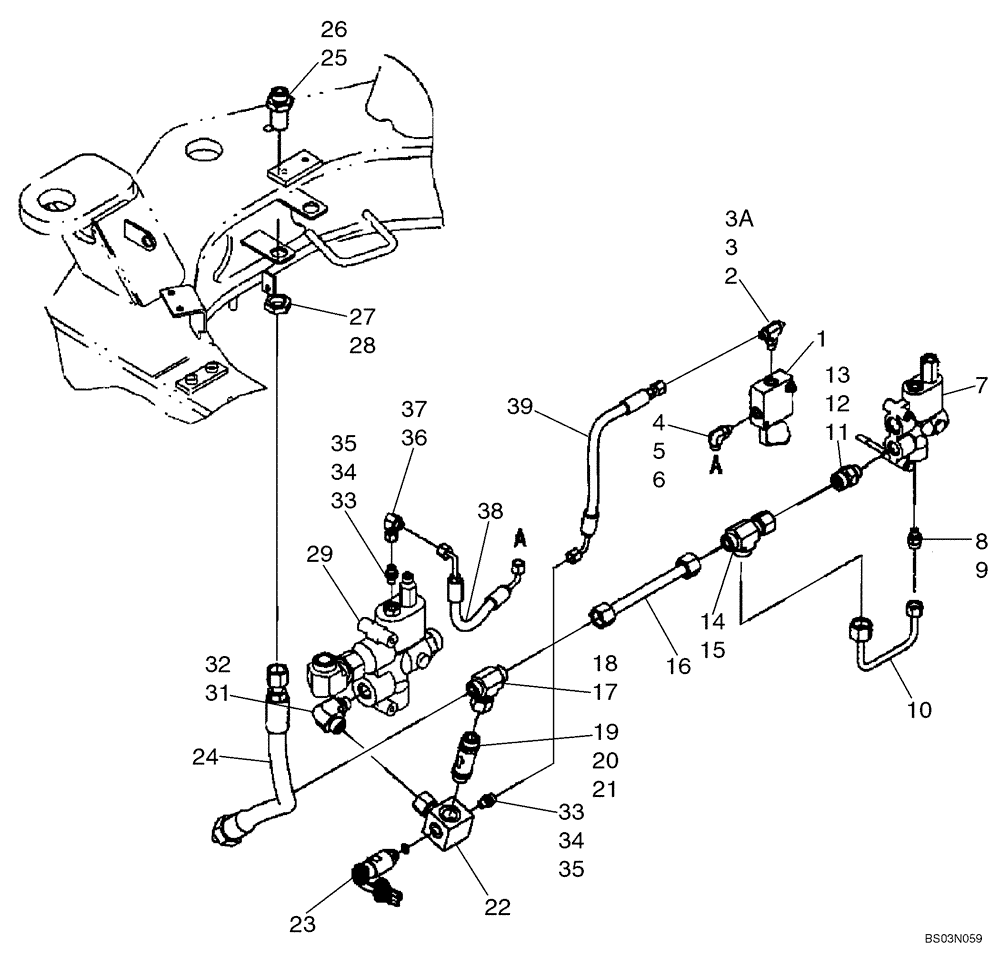

Запчасти Case 721D (05-06A) - HYDRAULICS - STEERING, AUXILIARY - SOLENOID VALVE TO STG PRIORITY VALVE (05) - STEERING

1

8501194

SOLENOID VALVE

Auxiliary Solenoid; Component Parts Not Serviced Separately

1шт.

2

700-413

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 3, 3A

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

3a

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 35, 36

1шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

6

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

8605253

VALVE

Priority; Auxilliary; See Figure 05-11

1шт.

7

87371432

HYDRAULIC VALVE

Priority; Auxilliary; See Figure 05-11

1шт.

8

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Incl. 9, 35

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10

8500255

HYD TUBE

Auxiliary Pressure

1шт.

11

392354A1

VALVE, CHECK

Incl. 12, 13

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 15

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

16

8501211

HYD TUBE

Auxiliary Supply

1шт.

17

701-439

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl.18

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

19

8501199

CHECK VALVE

Incl. 20, 21

1шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

21

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

22

87433583

FITTING

1шт.

23

398888A1

PRESSURE SWITCH

Incl. 15

1шт.

24

8501243

FLEXIBLE HOSE

777 mm (30 19/32 in); Steering Pressure

1шт.

25

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 26

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

27

701-919

BHD LOCK NUT,1" - 14

Incl. 20

1шт.

28

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

29

8605045

HYDRAULIC VALVE

Priority, Steering; See Figure 05-08

1шт.

30

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 31, 32

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

32

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

33

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Straight; 6mm ORFS x M12 ORB; Incl. 34, 35

2шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

35

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

36

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. 37

3шт.

37

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

38

8602582

FLEXIBLE HOSE

290 mm (11 27/64 in); Auxiliary Steering Load Sense

1шт.

39

87433588

FLEXIBLE HOSE

Auxiliary Switch Drain; 406mm ( 15 In )

1шт.
