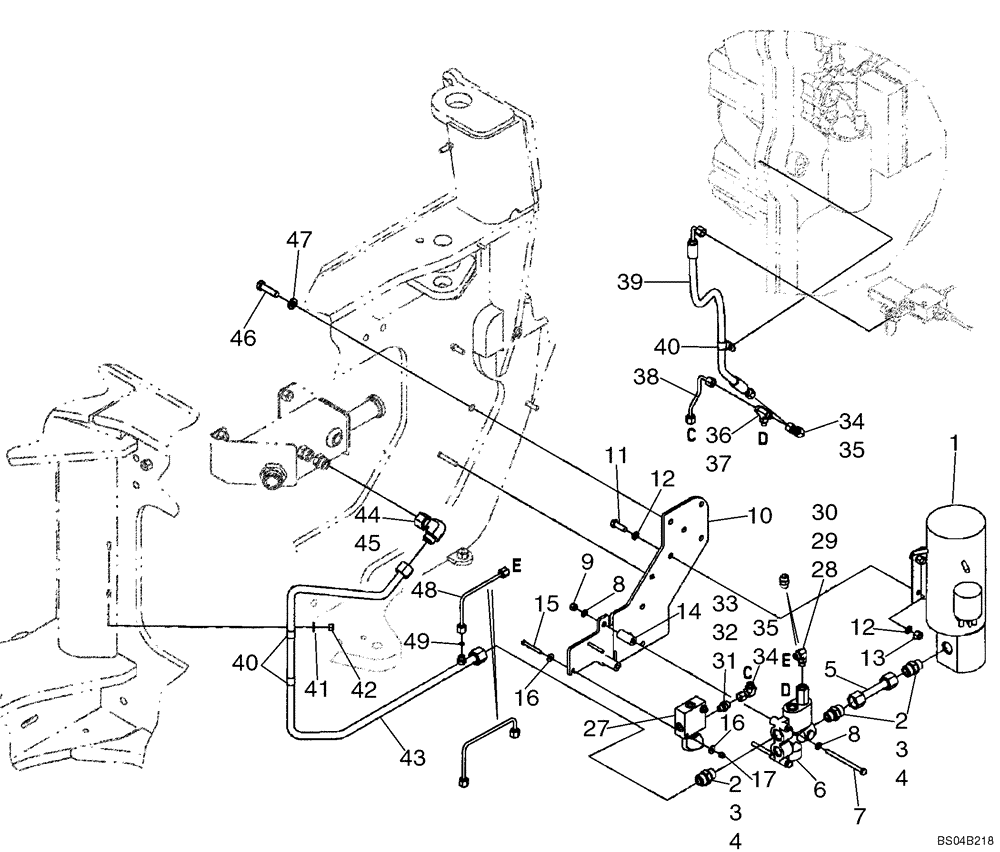

Запчасти Case 721D (05-06) - HYDRAULICS - STEERING, AUXILIARY - PUMP TO MANIFOLD (05) - STEERING

1

87581480

ELECTRIC PUMP

Auxiliary Steering; Replaces 380013A1; See Figure 05-09

1шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 3, 4

3шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

4

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

8500249

HYD TUBE

Auxiliary Pressure

1шт.

6

8605253

VALVE

Priority; See Figure 05-08

1шт.

6

87371432

HYDRAULIC VALVE

Priority; See Figure 05-08

1шт.

7

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

10

8604748

BRACKET

Auxilary Steering

1шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

14

8500692

SPACER

2шт.

15

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

16

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

17

832-10406

NUT,M6 x 1, Cl 8

2шт.

27

8501194

SOLENOID VALVE

Auxiliary Solenoid; Component Parts Not Serviced Separately

1шт.

28

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 29, 30; Use with 8605253 Valve; Ref 6

1шт.

28

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Straight; 6mm ORFS x M12 ORB; Incl. 29, 30; Use with 87371432 Valve; Ref 6

1шт.

29

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

30

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

31

8602547

VALVE, CHECK

300 PSI; Incl. 46, 47

1шт.

32

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

33

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

34

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. 30

2шт.

35

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

36

700-413

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 32, 32A

1шт.

37

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

38

8604634

HYD TUBE

Priority Load Sense

1шт.

39

8500248

FLEXIBLE HOSE

769 mm (30 17/64 in); Load Sense

1шт.

40

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

41

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

42

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

43

87433570

HYD TUBE,15.88 mm OD x 506, 449 mm L

Auxiliary Tank

1шт.

44

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 45

1шт.

45

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

ORFS

2шт.

46

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

47

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

48

8500253

HYD TUBE

Auxiliary Tank; Use with 8605253 Valve; Ref 6

1шт.

48

87374661

HYD TUBE,4.57 mm ID x 6.35 mm OD

TUBE Auxiliary Tank; Use with 87371432 Valve; Ref 6

1шт.

49

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.
