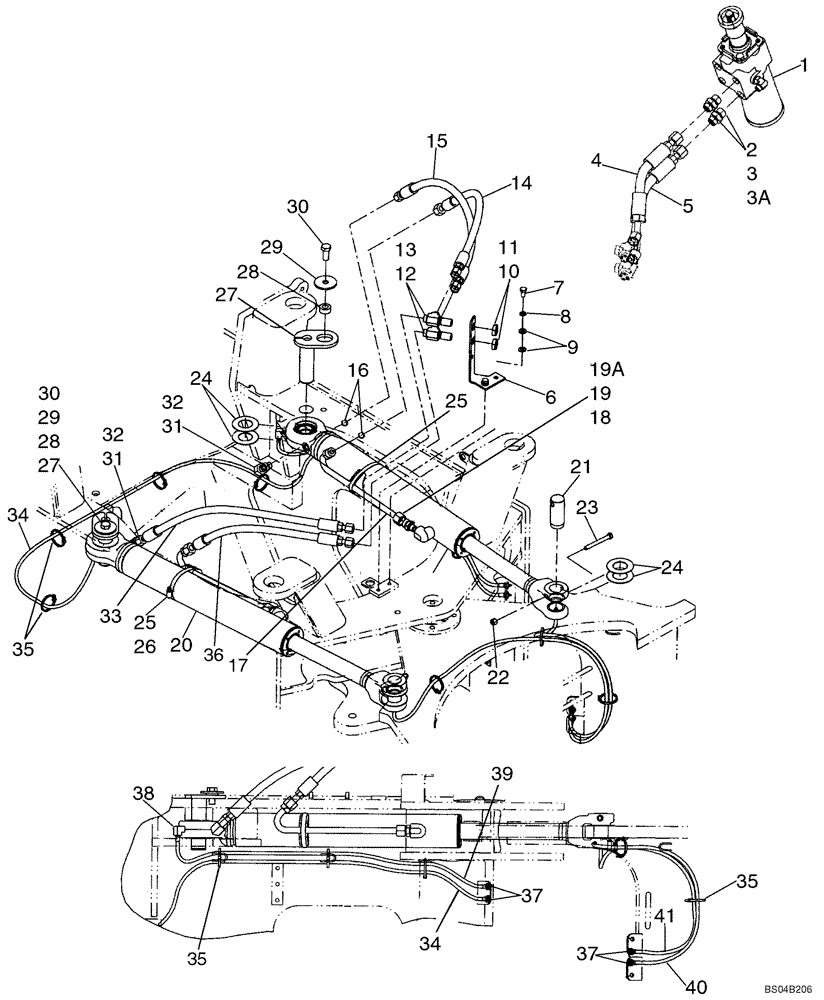

Запчасти Case 721D (05-05) - HYDRAULICS - CYLINDER, STEERING (05) - STEERING

1

8602659

HYDRAULIC VALVE

See Figure 05-02

1шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Replaces 700-162; Incl. 3, 3A

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

(Replaces 238-6014) Face Seal

1шт.

3a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

8605809

HOSE

Replaces 8500470; 299mm (113/4 in); Left Steering

1шт.

5

8605808

HOSE,12.7mm ID x 316mm L, SAE 100R16

Replaces 8500469; 316mm (12 7/16 in); Right Steering

1шт.

6

8602342

BRACKET

Replaces 8500482; Bulkhead

1шт.

7

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

8

892-11010

LOCK WASHER,M10

2шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

10

701-903

NUT,13/16" - 16

Incl. 11

2шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

12

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

12mm ORFS bulkhead Run; Incl. 13

2шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

3шт.

14

8602589

FLEXIBLE HOSE

715 mm ( 28 9/32 in); Left Side Rod

1шт.

15

8500460

FLEXIBLE HOSE

872 mm (34 21/64 in); Left Side Base

1шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

17

8602591

HYD TUBE

Steering Cylinder

2шт.

18

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 19, 19A

2шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

19a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

8602346

STEERING CYLINDER

See Figure 05-10; If Used; Piston Flange 4.19mm Thick

2шт.

20

87452362R

REMAN-HYD CYLINDER

721D CASE WHEEL LOADER (NORTH AMERICA), Piston Flange 4.19mm Thick (1/03-), Reman for New PN 8602346

2шт.

20

87452362C

CORE-HYD CYLINDER

Return Number

2шт.

20

87452362

STEERING CYLINDER

See Figure 05-10A; If Used; Piston Flange 7.19mm Thick

2шт.

20

87452362R

REMAN-HYD CYLINDER

721D CASE WHEEL LOADER (NORTH AMERICA), Piston Flange 7.19mm Thick (1/03-)

2шт.

20

87452362C

CORE-HYD CYLINDER

Return Number

2шт.

21

8500227

PIN,40mm OD x 95mm L

Front Chassis

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

If Used

2шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

If Used

2шт.

23

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

If Used

2шт.

23

87308835

WASHER

SCREW Shoulder M8 x 80; 12.9; If Used

2шт.

24

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

41 x 76 x 1,5 mm

8шт.

25

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

26

8500483

BLOCK

2шт.

27

8602344

PIN,39.99mm OD x 150.5mm L

Replaces 8500223; Rear Chassis

2шт.

28

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

29

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

30

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

31

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

12mm ORFS x M18 ORB; Incl. 32, 32A

2шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

32a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

33

8500458

FLEXIBLE HOSE

772 mm (30 25/64 in); Steering Cylinder

1шт.

34

318013A1

FLEXIBLE HOSE,4.8mm ID x 2723mm L

2723 mm (107 13/64 in); Rear Trunnion Grease

1шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

10шт.

36

8602590

FLEXIBLE HOSE

555 mm (21 27/32 in); Right Side Rod

1шт.

37

F53473

LOCK NUT,1/8-27 NPSM

4шт.

38

328082A1

ELBOW

90 Degree

2шт.

39

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (40 63/64 in); Grease; Incl. 39A, 39B

1шт.

39a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

39b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

40

313682A1

FLEXIBLE HOSE

1320 mm (51 31/32 in); Grease

1шт.

41

313683A1

FLEXIBLE HOSE

855 mm (33 21/32 in); Grease

1шт.
