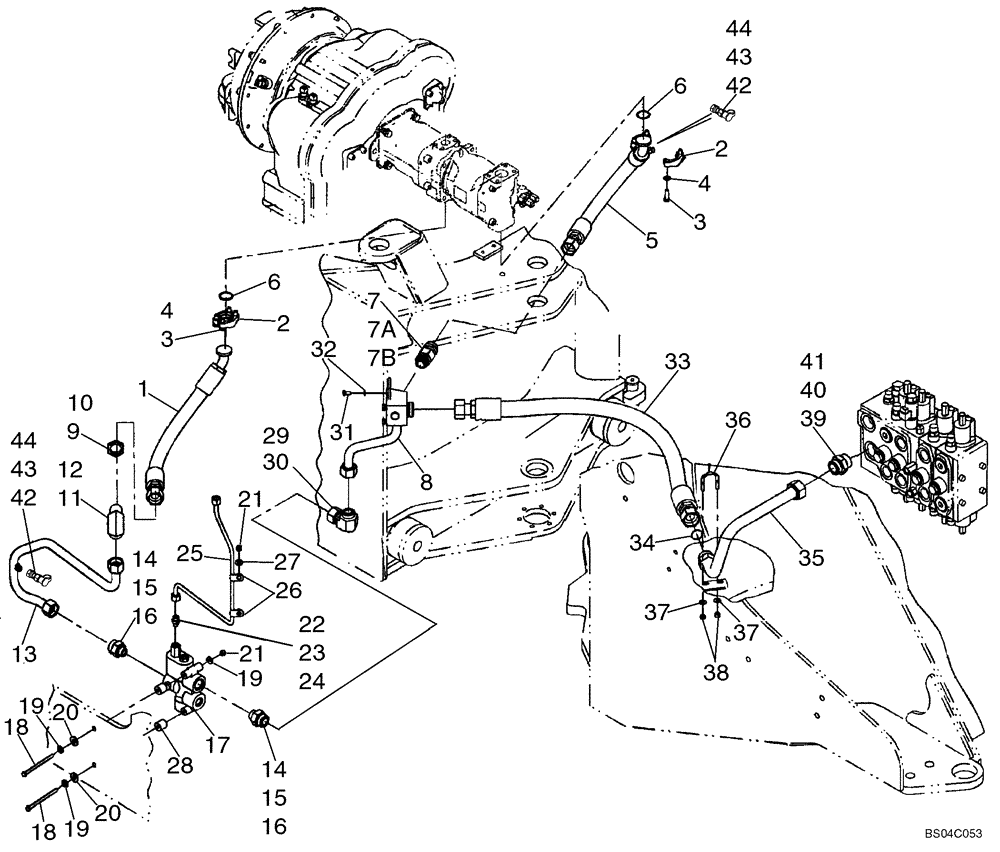

Запчасти Case 721D (05-04) - HYDRAULICS, STEERING - PUMP TO CONTROL VALVE (05) - STEERING

1

8604875

FLEXIBLE HOSE

555 mm; Steering Pressure

1шт.

2

A12306

FLANGE

2шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

5

87443395

FLEXIBLE HOSE,25.4mm ID x 635mm L, SAE 100R12

635mm (25in); Loader Pressure; Replaces 8501012

1шт.

6

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

7

87443394

VALVE, CHECK

M33 ORB x 16mm ORFS; Replaces 8500371; Incl. 7A, 7B

1шт.

7a

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

7b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

8

8500368

HYD TUBE,25.00 mm OD x 250, 150 mm L

Excess Flow

1шт.

9

701-908

BHD LOCK NUT,1-7/16" - 12

Incl. 10

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

11

701-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl. 26

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

13

8604888

TUBE,25.00 mm OD

Steering Pressure

1шт.

14

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 15, 16

2шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

16

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

17

8605045

HYDRAULIC VALVE

Priority; See Figure 05-07

1шт.

17

87371434

HYDRAULIC VALVE

Priority; Replaces 8605045; See Figure 05-07

1шт.

18

814-8130

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

2шт.

19

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

22

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Incl. 23, 24

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

24

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

25

8500358

HYD TUBE

Priority Tank; Used with Valve 8605045; Overall Length from ORFS is 354 +/- 5 mm

1шт.

25

87374907

HYD TUBE,7.74 mm ID x 9.52 mm OD x 376, 270 mm L

Priority Tank; Used with Valve 87371434; Overall Length from ORFS is 376 +/- 5 mm

1шт.

26

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

28

8500571

SPACER,10mm ID x 25.4mm OD x 25mm L

2шт.

29

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl. 30

1шт.

30

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

31

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

32

892-11008

LOCK WASHER,8mm ID

4шт.

33

8500230

FLEXIBLE HOSE

1068 mm (42 3/64 in); Articulation Pressure

1шт.

34

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

35

8500531

HYD TUBE

Valve Supply

1шт.

36

294901A1

U-BOLT,M8 x 1.25, Coined

BOLT "U"

1шт.

37

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

38

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

39

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. 40, 41

1шт.

40

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

41

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

42

190117A1

COUPLING

Diagnostic; See Figure 08-25A for Complete Diagnostics

2шт.

43

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. 44

1шт.

44

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
