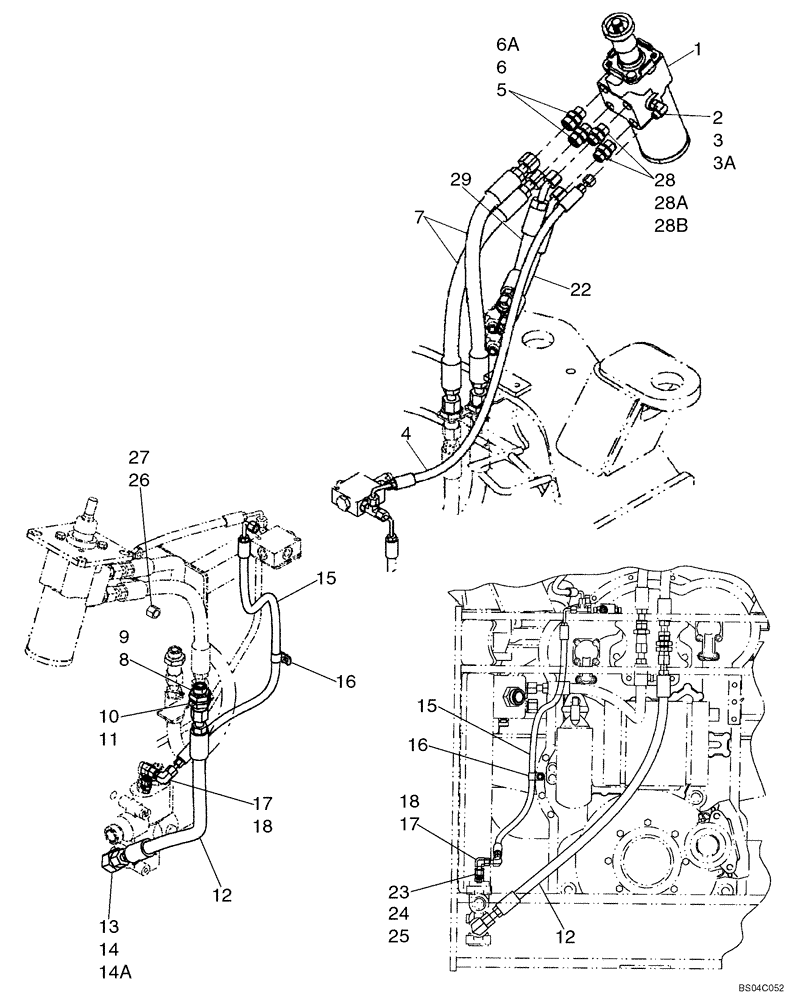

Запчасти Case 721D (05-03) - HYDRAULICS - STEERING - STANDARD (05) - STEERING

1

8602659

HYDRAULIC VALVE

Steering; See Figure 05-02

1шт.

2

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 3, 3A

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

3a

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

8500239

FLEXIBLE HOSE

801 mm (31 1/2 in); Steering Load Sense

1шт.

5

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

STR THD 16 mm ORFS x M22 ORB; Incl. 6, 6A

2шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

6a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

8605807

HOSE

498mm (19 1/2 in); Steering; Replaces 8500238

2шт.

8

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

M16 ORFS Fitting; Incl. 9

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

10

701-919

BHD LOCK NUT,1" - 14

Incl. 11

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

12

8500241

FLEXIBLE HOSE

918 mm (36 9/64 in); Steering Pressure

1шт.

13

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 14, 14A

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

14a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

15

8500242

FLEXIBLE HOSE

881 mm (34 11/16 in); Steering Load Sense

1шт.

16

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Use existing hardware

1шт.

17

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. 18

2шт.

18

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

19

8500468

VALVE, CHECK

Incl. 20, 21; Replaced By 700-103

1шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

21

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

22

8605808

HOSE,12.7mm ID x 316mm L, SAE 100R16

316mm (12 1/2 in); Right Steering

1шт.

22

8605808

HOSE,12.7mm ID x 316mm L, SAE 100R16

Right Steering

1шт.

23

8602547

VALVE, CHECK

300 PSI; Incl. 24, 25

1шт.

24

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

25

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

26

701-906

CAP,1" - 14

5/8; Incl. 27

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

28

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Straight Thread 12mm O-Ring Face Seal x M22 O-Ring Boss; Incl. 28A,28B

2шт.

28a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

28b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

29

8605809

HOSE

299mm (11 3/4 in); Left Steering

1шт.
