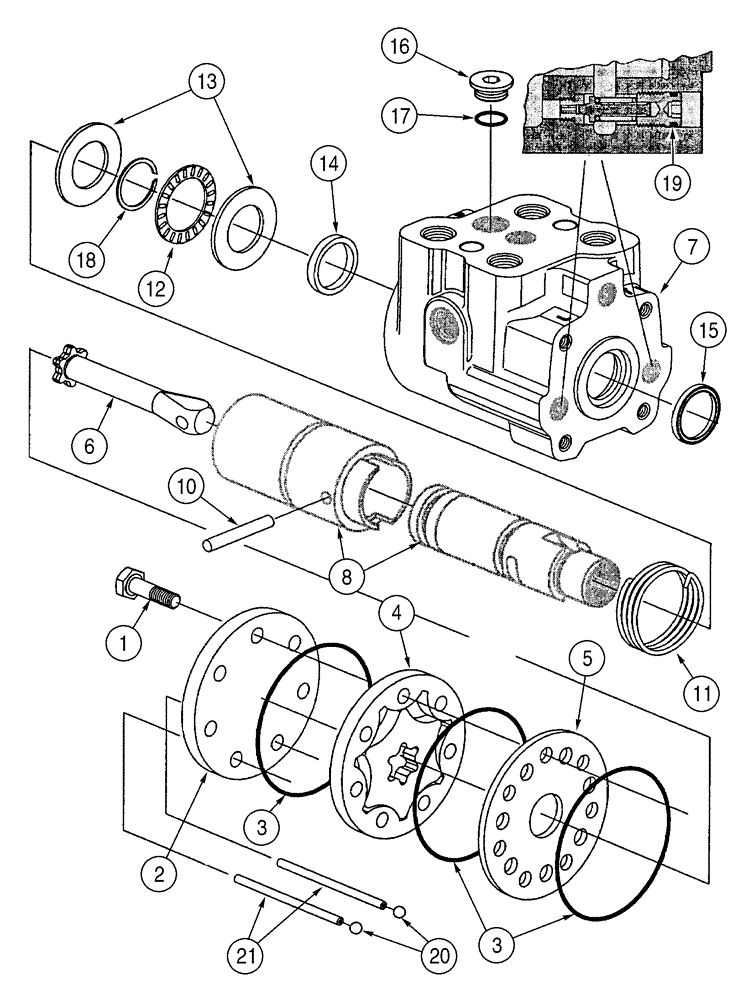

Запчасти Case 721D (05-02) - VALVE ASSY - STEERING CONTROL (05) - STEERING

8602659

HYDRAULIC VALVE

Steering; Inc. Steering Column; Incl. 1 - 30; Production Part Number; Replaced By 87307059 With Updated Seals

1шт.

87307059

HYDRAULIC STEERING

Steering; Inc. Steering Column; Incl. 1 - 30; Production Part Number; Replaces 8602659

1шт.

8602671

HYDRAULIC STEERING

Order For Service; Incl. 1 - 21; Replaced By 87307314

1шт.

87307314

HYDRAULIC STEERING

Order For Service; Incl. 1 - 21

1шт.

8604683

SEAL KIT

Seal; Incl. 3, 14, 15, 19

1шт.

87319529

O-RING KIT

Seal; Replaces 8602671

1шт.

1

8603001

SCREW

7шт.

2

NSS

NOT SOLD SEPARAT

Cap

1шт.

3

8604283

O-RING

3шт.

4

NSS

NOT SOLD SEPARAT

Gerotor

1шт.

5

NSS

NOT SOLD SEPARAT

Plate

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Drive

1шт.

7

NSS

NOT SOLD SEPARAT

Housing

1шт.

8

NSS

NOT SOLD SEPARAT

Spool

1шт.

10

298591A1

PIN

Centering

1шт.

11

8604430

SPRING

Centering

1шт.

12

8604284

THRUST BEARING

Thrust

1шт.

13

8604285

RACE

2шт.

14

8604431

SEAL

1шт.

15

8604294

SEAL

Dust

1шт.

16

NSS

NOT SOLD SEPARAT

Plug

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

18

NSS

NOT SOLD SEPARAT

Retaining

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

ORFS

2шт.

20

NSS

NOT SOLD SEPARAT

2шт.

21

NSS

NOT SOLD SEPARAT

2шт.

8604413

STEERING SHAFT

Incl. 22 - 30; Not Illustrated

1шт.

22

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

23

NSS

NOT SOLD SEPARAT

Tube

1шт.

24

NSS

NOT SOLD SEPARAT

Flange

1шт.

25

NSS

NOT SOLD SEPARAT

Plate

1шт.

26

NSS

NOT SOLD SEPARAT

Bearing, Support

1шт.

27

NSS

NOT SOLD SEPARAT

Retainer

1шт.

28

NSS

NOT SOLD SEPARAT

Shaft

1шт.

29

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

30

NSS

NOT SOLD SEPARAT

Cap

1шт.
