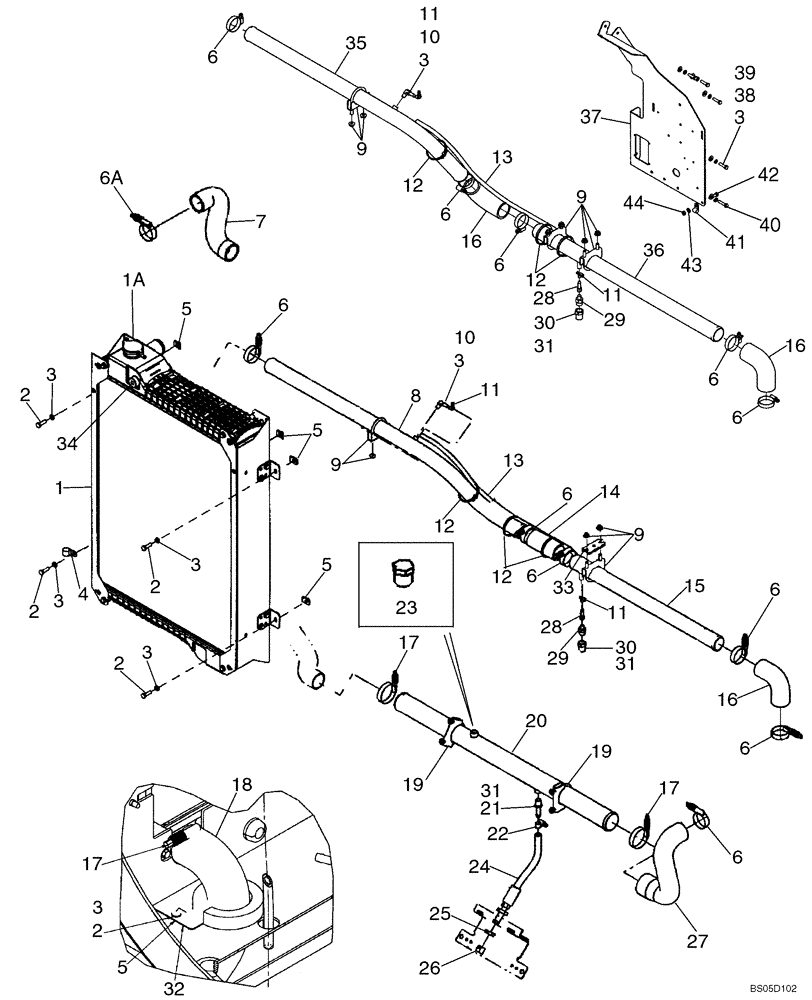

Запчасти Case 721D (02-02) - RADIATOR - MOUNTING (02) - ENGINE

1

8602421

RADIATOR

1шт.

1a

A170241

RADIATOR CAP

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

3

892-11008

LOCK WASHER,8mm ID

9шт.

4

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

5

833-40408

NUT,M8, U

5шт.

6

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

5шт.

6a

254026A1

HOSE CLAMP,44.45mm - 66.67mm

1шт.

7

8500083

RADIATOR HOSE,44.50 mm ID x 165,105,79,61 mm, SAE 20R4 CLASS D1

Top

1шт.

8

8602655

TUBE,44.50 mm OD x 889, 338 mm L

Top; If Used

1шт.

9

382189A1

CLAMP

3шт.

10

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

13

320374A1

HOSE

Coolant Breather, 925 mm ( 36 7/16 in.), Cut To Length From 31-1182 Bulk Hose

1шт.

14

8501025

FLEXIBLE HOSE,44.50 mm ID x 110.00 mm, SAE 20R4 Class D1

If Used

1шт.

15

8602661

TUBE,44.50 mm OD x 625.00 mm L

Top

1шт.

16

381232A1

HOSE,44.50 mm ID x 87.00 mm, SAE J20R4 Class D1

Elbow

2шт.

17

L115548

CLAMP,57.15mm - 79.38mm

3шт.

18

8500907

RADIATOR HOSE,57.20 mm ID x 300,275,95 mm, SAE 20 R4 CLASS D1

Bottom

1шт.

19

393632A1

CLAMP

2шт.

20

8500079

TUBE,57.20 mm DIA x 908.00 mm L

Bottom; Coolant

1шт.

21

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

22

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

23

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

Used on Models without Heater

1шт.

24

8500085

HOSE,12.7mm ID x 318mm L

318 mm ( 12 1/2 in.); Remote Coolant Drain

1шт.

25

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1/2 Tube

1шт.

26

218-755

CAP,37 Degree, 3/4"-16

1/2" tube

1шт.

27

8500084

HOSE,48.00 mm ID, 57.20 mm ID x 235.00 mm, SAE 20R4 Class D1

Bottom

1шт.

28

217-191

FITTING,1/4" Hose Barb x 1/8" Female NPTF

1шт.

29

J911901

VALVE, CHECK

1шт.

30

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

1шт.

31

345-87

SEALANT

Sealant 592; Used with Items 21, 30

1шт.

32

8500820

PLATE

Radiator Drain Back

1шт.

33

382188A2

PLATE

Spacer; If Used

1шт.

34

419792A2

SENSOR

Coolant Level

1шт.

35

87446948

TUBE,44.5 mm DIA x 734, 292 mm L

Top

1шт.

36

87446950

HYD TUBE,44.5 mm DIA x 767 mm L

Top

1шт.

37

87338366

PLATE

Guard; Right

1шт.

38

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

39

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

40

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

41

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

(12.7 mm; M8 Bolt)

1шт.

42

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

44

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.
