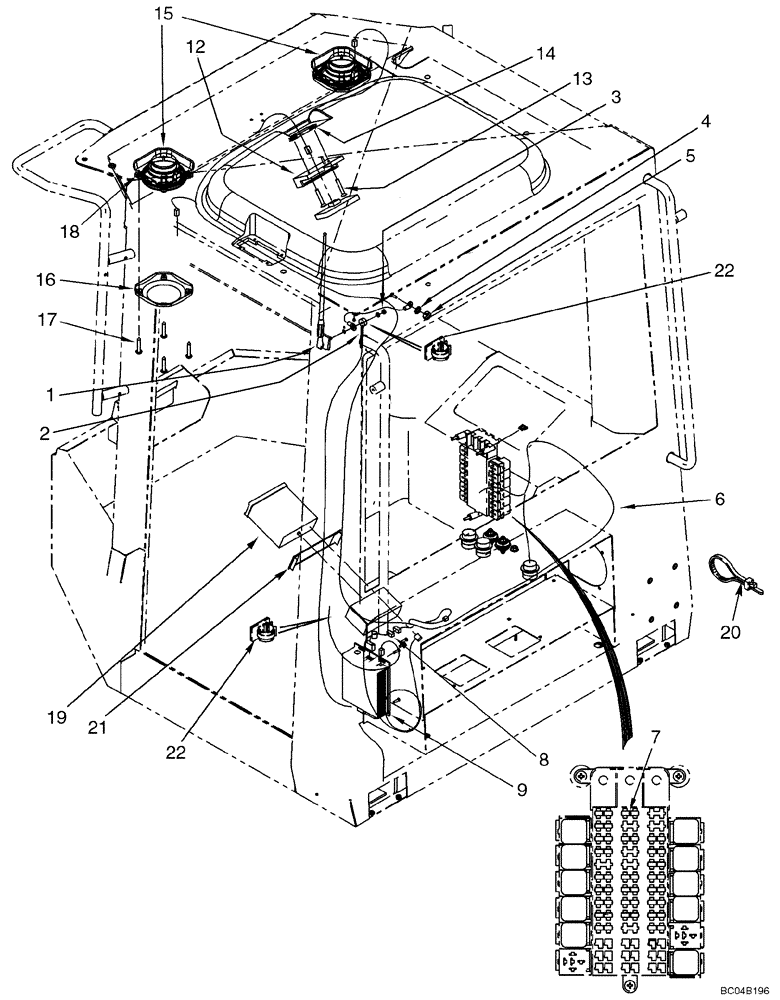

Запчасти Case 721D (04-30) - RADIO - MOUNTING - 24 VOLT REMOTE (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

REMOTE RADIO SYSTEM

1шт.

REF

INSTRUCTION

24 VOLT

1шт.

1

197745A1

ANTENNA

1шт.

2

316654A1

CABLE ASSY.

Antenna

1шт.

3

316655A1

GROUND CABLE

1шт.

4

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

6

277919A2

HARNESS

Radio

1шт.

7

A149799

FUSE

7.5 amp

1шт.

8

319160A1

WIRE HARNESS

Radio Installation

1шт.

9

316781A2

RADIO

24 Volt; Main Chassis; Use Existing Hardware

1шт.

12

186082A1

REMOTE CONTROL

Radio

1шт.

13

842-1425

SCREW,Phillips Drive, Oval HD, M4 x 25mm, Cl 4.8

2шт.

14

302862A1

SPRING NUT,4.2 Thread

2шт.

15

182721A2

SPEAKER

5-1/2

2шт.

16

187281A1

COVER

2шт.

17

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

18

302862A1

SPRING NUT,4.2 Thread

8шт.

19

186084A1

RADIO

24 Volt; Tape Player; Order from Ship Direct; If Used; Europe Only

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

21

334569A1

PLATE

Mounting for Tape Player; If Used; Europe Only

1шт.

22

169850C2

CABLE CLIP

2шт.
