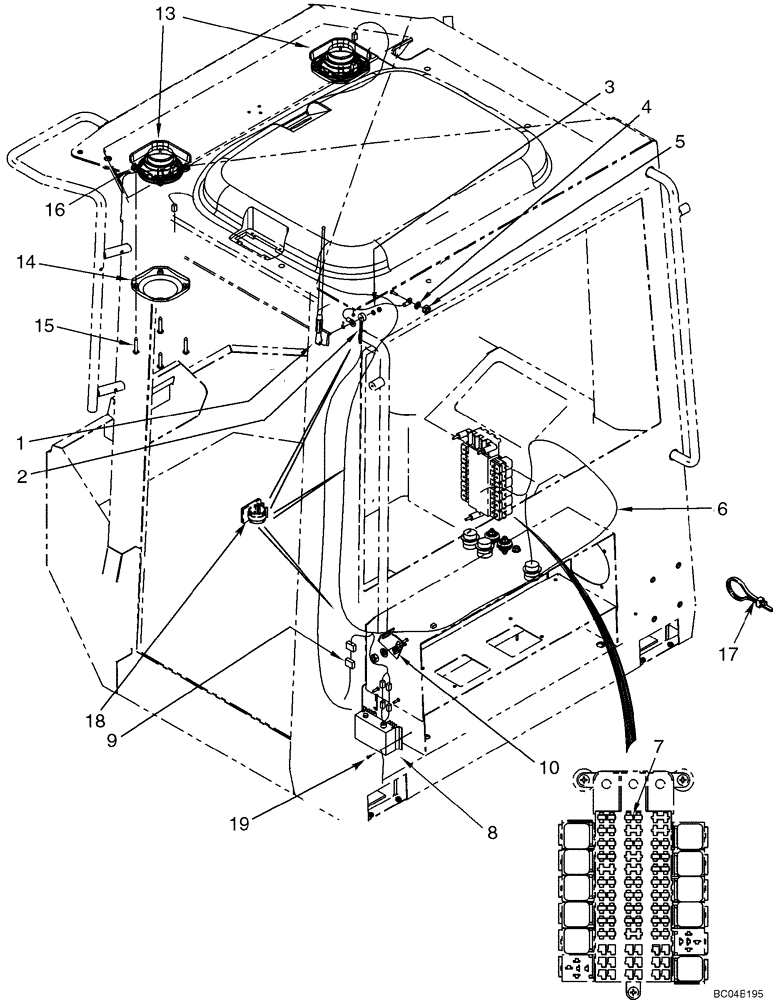

Запчасти Case 721D (04-29) - RADIO - MOUNTING -12 VOLT (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

RADIO READY SYSTEM

1шт.

REF

INSTRUCTION

12 VOLT

1шт.

1

197745A1

ANTENNA

1шт.

2

316654A1

CABLE ASSY.

Antenna

1шт.

3

316655A1

GROUND CABLE

1шт.

4

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

6

277919A2

HARNESS

Radio

1шт.

7

A149799

FUSE

7.5 amp

1шт.

8

277982A1

TRANSFORMER

24 - 12 V

1шт.

9

319160A1

WIRE HARNESS

Radio

1шт.

10

316666A2

SUPPORT

Radio; Use Existing Hardware

1шт.

13

182721A2

SPEAKER

5-1/2

2шт.

14

187281A1

COVER

2шт.

15

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

16

302862A1

SPRING NUT,4.2 Thread

8шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

18

169850C2

CABLE CLIP

2шт.

19

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

2шт.
