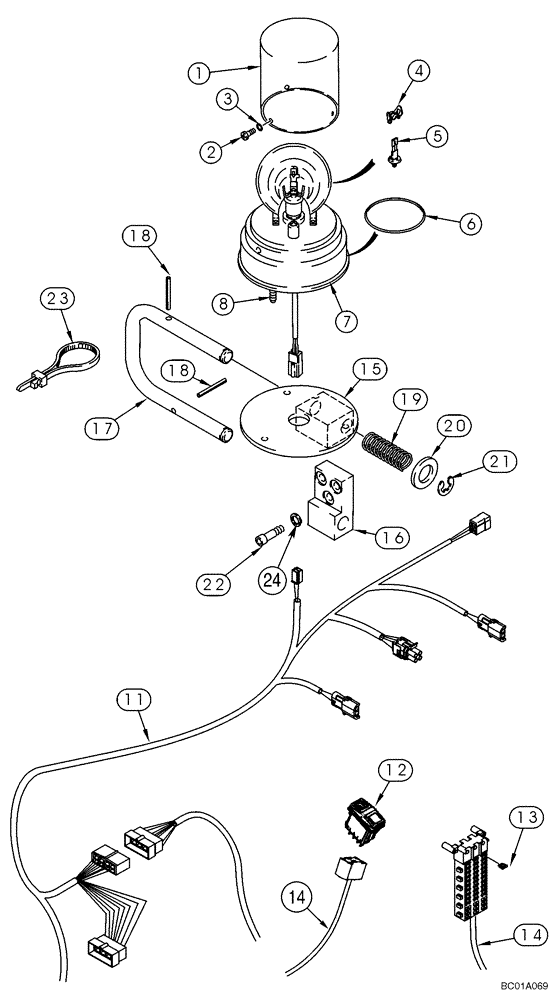

Запчасти Case 721D (04-24) - BEACON ASSY, ROTATING - MOUNTING (04) - ELECTRICAL SYSTEMS

367751A1

BEACON ROTATING

; Incl. 1 - 8

1шт.

1

192809A1

LENS

Amber

1шт.

1

87400956

LENS

Blue

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

Clip

1шт.

5

P40533

LAMP

24V; Halogen

1шт.

6

A187575

O-RING

Drive Motor

1шт.

7

NSS

NOT SOLD SEPARAT

Base; Incl. Drive Motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

11

238764A2

WIRE HARNESS

Cab Roof

1шт.

12

374430A2

BEACON SWITCH

Rotating Beacon

1шт.

13

A149799

FUSE

7.5 amp

1шт.

14

REF

INSTRUCTION

HARNESS MAIN CAB; SEE FIG 04-09

1шт.

15

313215A2

BRACKET

Beacon Mounting

1шт.

16

313213A3

BRACKET

Beacon Mounting; At Cab

1шт.

17

313216A2

ARM

Beacon Mounting

1шт.

18

38-31620

PIN,6.35mm OD x 31.75mm L

2шт.

19

373596A1

SPRING

Return

2шт.

20

495-11081

WASHER,3/4", SAE

2шт.

21

100-3375

SNAP RING,#75, .574" Dia, E-Type

2шт.

22

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

3шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

24

892-11008

LOCK WASHER,8mm ID

3шт.
