(04-23) - LAMP ASSY, FRONT AND REAR - CAB/CANOPY

Запчасти Case 721D (04-23) - LAMP ASSY, FRONT AND REAR - CAB/CANOPY (04) - ELECTRICAL SYSTEMS

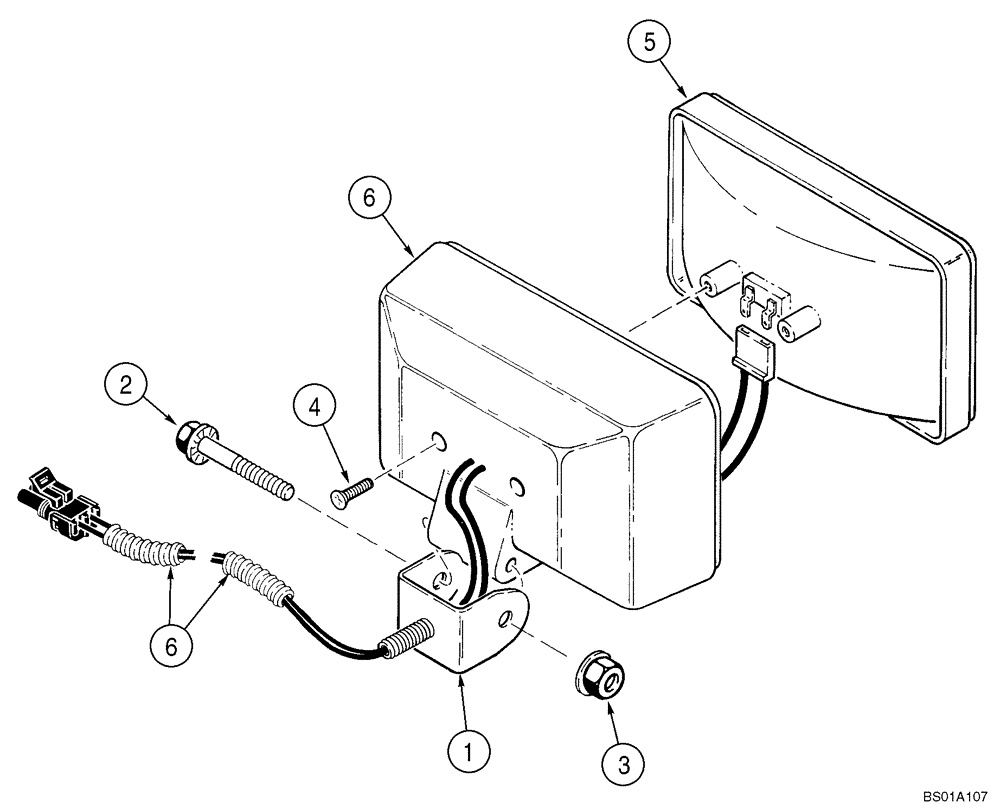

Схема запчастей Case 721D - (04-23) - LAMP ASSY, FRONT AND REAR - CAB/CANOPY (04) - ELECTRICAL SYSTEMS
2
1
3
5
6
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CAB OR CANOPY FLOOD LAMPS

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

Incl. 1 - 6

4шт.

1

A187913

SUPPORT

1шт.

2

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

2шт.

5

103653A1

HEADLIGHT,24V, 60W

1шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.
