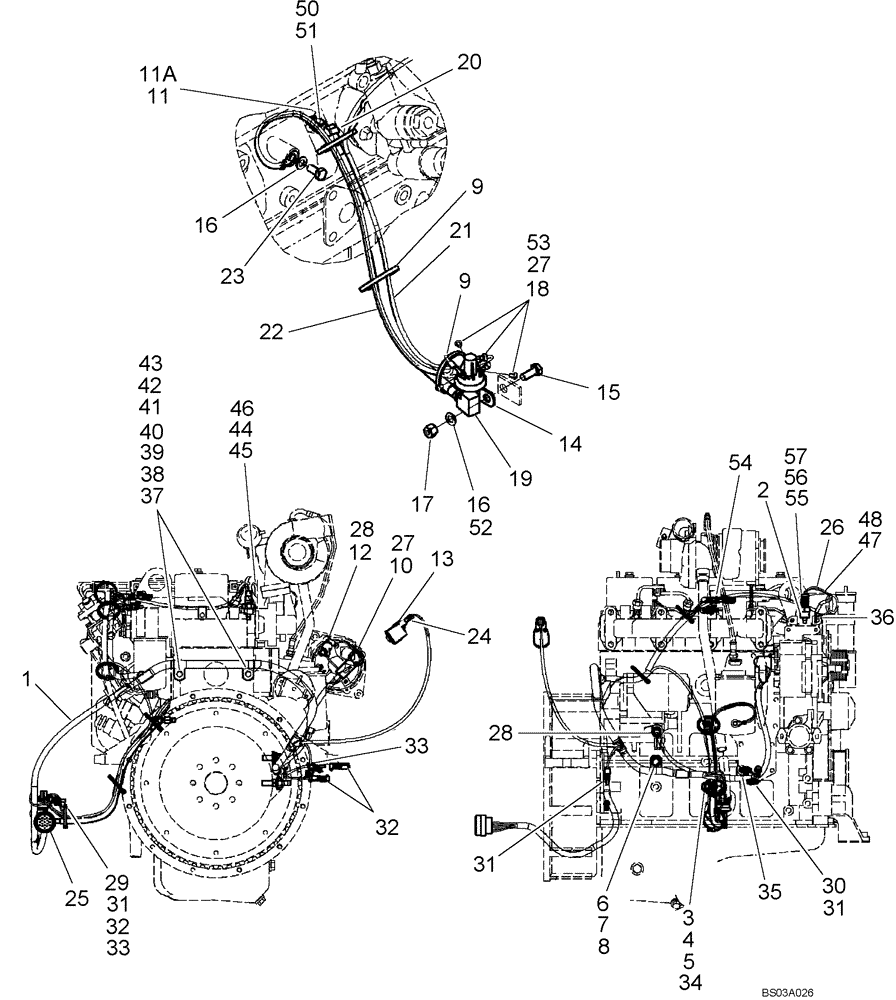

Запчасти Case 621D (04-15) - HARNESS - ENGINE (04) - ELECTRICAL SYSTEMS

1

87404981

WIRE HARNESS

Engine; Without Grid Heater; Includes Clamp Part Numbers Listed Below

1шт.

1a

87404980

WIRE HARNESS

Engine; With Grid Heater; Includes Clamp Part Numbers Listed Below

1шт.

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

19,0 mm

1шт.

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

(12.7 mm, 10.3mm)

1шт.

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

(19.0 mm)

1шт.

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

(12.7 mm, M12 Bolt)

1шт.

2

321446A1

SENSOR

Engine Cooling

1шт.

3

L127553

STUD

Brass

1шт.

4

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

5

L127555

NUT,Hex, 3/8" - 16

3/8, Brass

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

7

892-11008

LOCK WASHER,8mm ID

1шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

10

L126713

BOOT

2шт.

11

250838A2

HYD CONNECTOR

Incl. 11A

1шт.

11a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

S64612

BOOT

1шт.

13

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

15

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

18

404224A1

SENDER UNIT

SENDER Engine Oil Pressure; Incl. Hardware

1шт.

19

217-1050

90 ELBOW,1/8" - 27 NPTF Female

1шт.

20

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

21

335976A1

HOSE ASSY.

Oil Pressure

1шт.

22

8501337

GROUND CABLE

1шт.

23

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

24

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Restriction

1шт.

25

373356A1

ELEC. TERMINAL PIN

1шт.

26

194788A1

CONNECTOR, 2-POLE

2 Cavity; Engine Temperature

1шт.

27

1964709C1

TERMINAL CONNECTOR

1шт.

28

382256A1

TERMINAL CONNECTOR

1шт.

29

8602417

TERMINAL CONNECTOR,Female

Connector; Fuel Shutoff Solenoid

1шт.

30

245481C1

CONNECTION,ELECTRIC

Air Conditioning Compressor

1шт.

31

245480C1

ELEC CONNECTOR,1 Pin

Fuel, Air Conditioning Compressor, Ether Start

1шт.

32

245483C1

ELEC CONNECTOR,Male, 2 Pin

High Pressure Switch, Disconnect Switch, Ether Start

2шт.

33

245482C1

ELEC CONNECTOR,2 Pin

High Pressure Switch, Ether Start

1шт.

34

1964712C1

TERMINAL CONNECTOR

Ground

2шт.

35

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Use Existing Hardware

1шт.

36

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Use Existing Hardware

1шт.

37

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Use Existing Hardware

1шт.

38

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

39

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

40

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

41

892-11010

LOCK WASHER,M10

11 x 20 x 2 mm

12шт.

43

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

44

87404820

KIT

24 Volt; Grid Heater; Includes Grid Heater and Gasket; If Used

1шт.

44

87439536

KIT

24 Volt; Grid Heater; Includes Grid Heater and Gasket; If Used

1шт.

2831019

HEATER,24V

24 Volt; Grid Heater; If Used

1шт.

J938158

GASKET

Grid Heater; If Used

1шт.

45

87404464

KIT

Grid Heater ECU; Includes Sensor and ECU; If Used

1шт.

45

87439533

KIT

Grid Heater ECU; Includes Sensor and ECU; If Used

1шт.

46

87404708

MOUNTING PARTS

Grid Heater

1шт.

47

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

1/2 - 14 NPTF

1шт.

48

895-25005

WASHER,M5 x 15 x 1.6

2шт.

49

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

50

895-15012

WASHER,M12 x 28 x 2.5

13,5 x 28 x 2,5 mm

1шт.

51

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

52

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

53

8500758

HYD CONNECTOR

1шт.

54

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

55

225067C1

TERMINAL CONNECTOR

1шт.

56

NSS

NOT SOLD SEPARAT

Connector

1шт.

57

NSS

NOT SOLD SEPARAT

Cover

1шт.

42

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.
