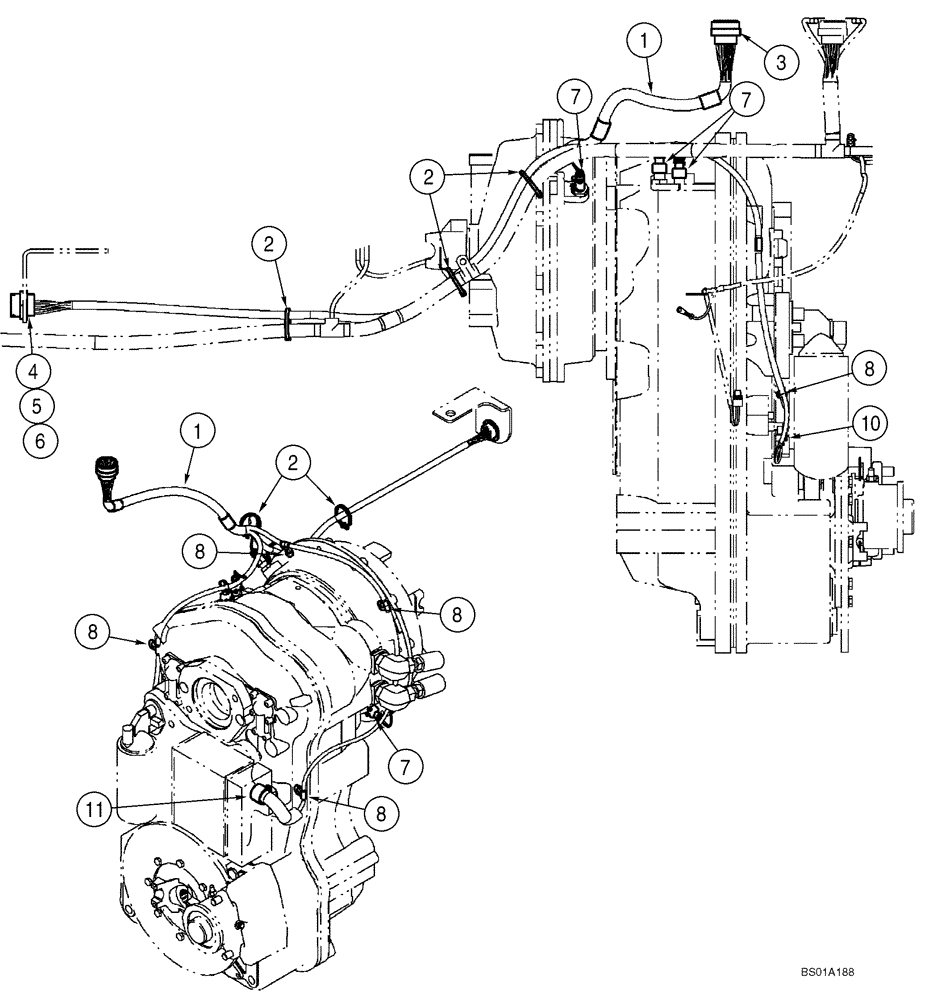

Запчасти Case 621D (04-14) - HARNESS - TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

86982782

SPADE TERMINAL,14 - 16 SAE

Transmission; Use Existing Hardware

1шт.

1

86992782

HARNESS

Transmission

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

3

373358A1

CONNECTOR,ELECTRIC

Cab Harness

1шт.

4

291659A1

ELEC CONNECTOR,Male, 19 Pin

Engine Harness; Incl. 5, 6

1шт.

5

459330C1

LOCK WASHER

1шт.

6

459329C1

NUT

1шт.

7

291718A1

ELEC CONNECTOR,Female, 2 Pin

4шт.

8

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

Use Existing Hardware

4шт.

9

371614A1

ELEC CONNECTOR,Female, 2 Pin

Switch; Filter Maintenance

1шт.

10

291719A1

CONNECTOR, ELEC

CONNECTOR Output Speed Sensor

1шт.

11

371566A1

CONNECTOR,ELECTRIC

Main Transmission

1шт.

12

8603537

SWITCH

Filter Maintenance ( Not Shown)

1шт.
