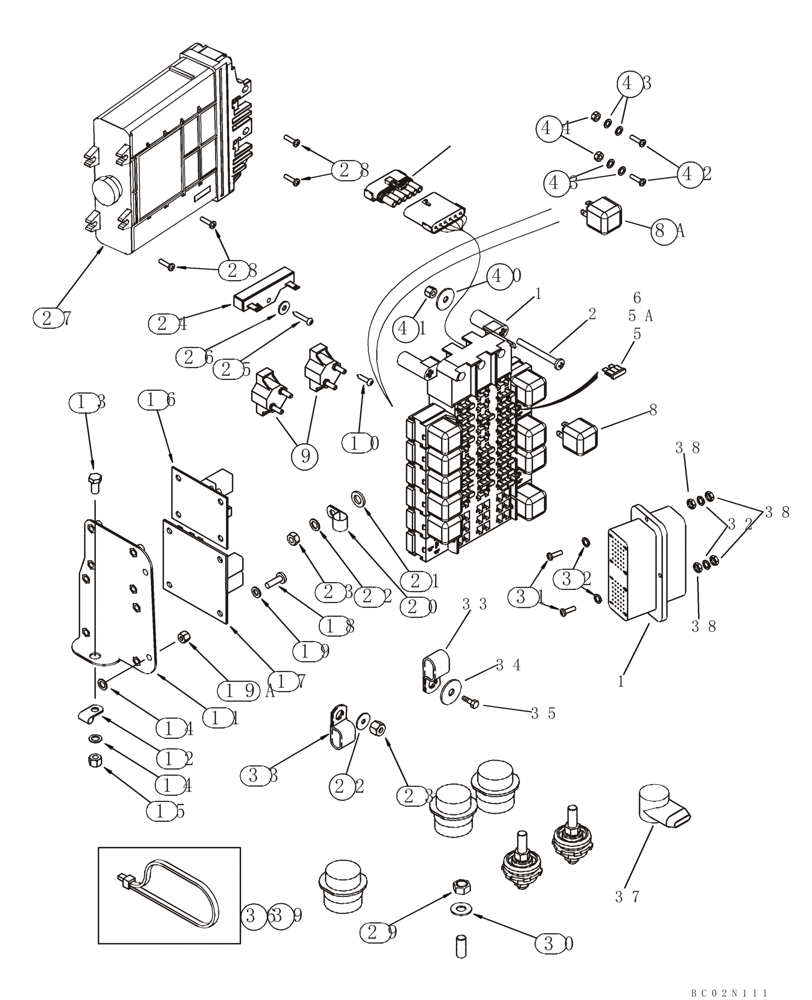

Запчасти Case 621D (04-11) - HARNESS - CAB, MAIN (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

POWER DISTRIBUTION CENTER

1шт.

1

87404791

HARNESS

Cab Main

1шт.

1

87311970

HARNESS

HARNESS Cab Main; Replaces 87404791; Use With Front Pedestal Harness 87311967 And Turn Switch 389487A1

1шт.

1a

A187813

DIODE

1шт.

2

840-1660

SCREW,Pan HD, M6 x 60mm, Cl 4.8

3шт.

5

A149798

FUSE

5 amp; Tan

8шт.

5a

A149799

FUSE

7,5 amp; Brown

6шт.

6

A149800

FUSE,10 Amp

10 amp; Red

2шт.

7

A149801

FUSE,Lt Blue, 15 Amp

15 amp; Light Blue; Not Illustrated

1шт.

8

326845A1

RELAY,24V

24V

11шт.

8a

A187938

RELAY,24V

Used With Main Cab Harness 87404791

1шт.

9

S243558

CIRCUIT-BREAKER,12.5A

2шт.

10

760-14319

SELF-TAP SCREW,Pan Hd, M4.2 x 19

4шт.

11

249152A2

SUPPORT

1шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

5шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

16

232363A1

MODULE

Power Off Timer

1шт.

17

232364A1

FLASHER UNIT

No. 10

1шт.

18

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

8шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

19a

832-10406

NUT,M6 x 1, Cl 8

2шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

22

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

24

F22316

RESISTOR,75 Ohms 0.2 Amps DC

75 ohm

1шт.

25

760-14325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

1шт.

26

895-25005

WASHER,M5 x 15 x 1.6

1шт.

27

8602878

MODULE

Transmission Control

1шт.

87427310R

REMAN ELECT CONTROL

621D S/N JEE0135501 & Aft. (1/03), Reman For New P/N's 8602878 & 87427310R, N.A. Only

1шт.

87427310C

CORE-ELECTRONIC CONT

Return Number, For N.A. Only

1шт.

28

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

4шт.

29

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass

1шт.

30

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

31

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

4шт.

32

892-11004

LOCK WASHER,M4

8шт.

33

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

34

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

35

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

36

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

5шт.

37

357906A1

BOOT

1шт.

38

824-1404

NUT,M4, Cl 5

8шт.

39

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

40

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

41

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

42

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

3шт.

43

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

44

832-10405

NUT,M5 x .8, Cl 8

2шт.

45

406567A1

DIODE

1шт.

46

245485C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

47

245488C1

ELEC CONNECTOR,6 Pin

1шт.
