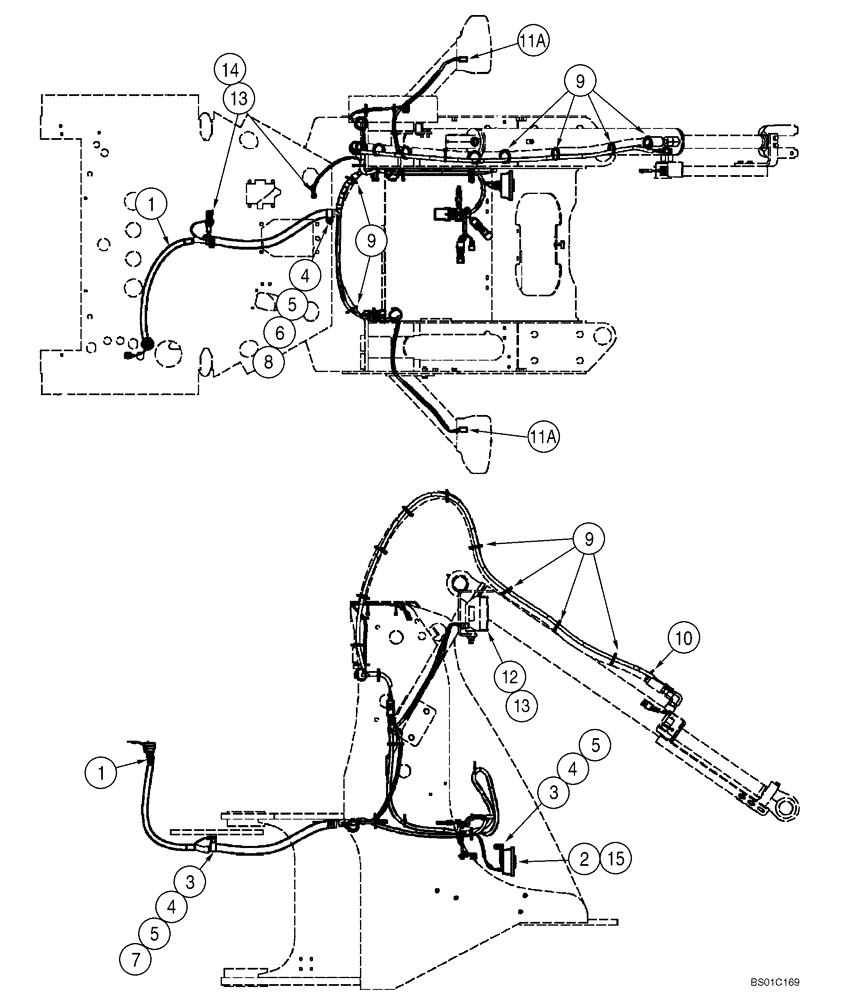

Запчасти Case 621D (04-07) - HARNESS, FRONT (XT LOADER) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

XT LOADER

1шт.

1

371199A5

HARNESS

Front

1шт.

2

251444A1

ASSEMBLY

300 HZ

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

7

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

8

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

10

396585A1

WIRE HARNESS

Return To Dig

1шт.

11

368056A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Left Hand; See Figure 04-19

1шт.

11a

225351C1

ELEC CONNECTOR,Female, 6 Pin

Combination; Left Hand, Right Hand

2шт.

12

368055A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Right Hand; See Figure 04-19

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

14

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5

2шт.

15

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Horn

2шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
