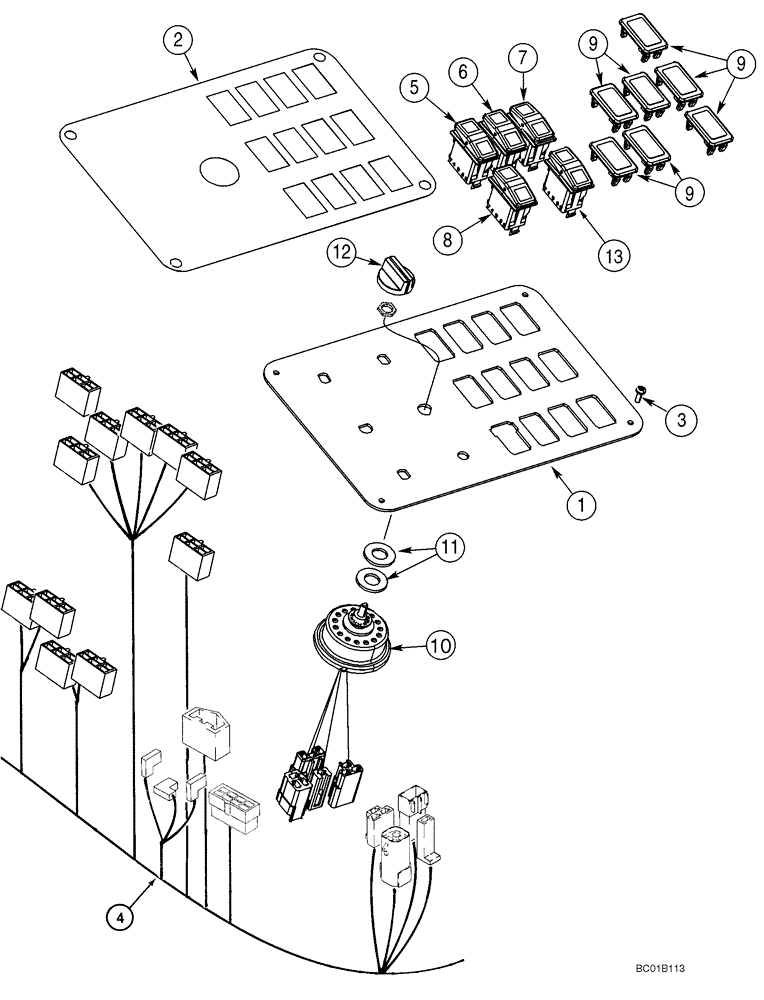

Запчасти Case 621D (04-05) - PANEL, CONTROL - SWITCHES - CANOPY (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WITH CANOPY

1шт.

1

197377A2

CONTROL PANEL

1шт.

2

283426A1

DECAL

Canopy Switches

1шт.

3

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

4шт.

4

REF

INSTRUCTION

HARNESS Cab Main; SEE FIG 04-11

1шт.

5

374421A4

SWITCH

Declutch

1шт.

6

374422A2

SWITCH

Detent

1шт.

7

374427A2

SWITCH

Return To Travel

1шт.

8

374431A2

SWITCH

Trans Auto

1шт.

9

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

7шт.

10

1994716C1

LIGHT SWITCH

Lamp

1шт.

11

495-11053

WASHER,1/2", SAE

2шт.

12

1994720C1

KNOB

Control

1шт.

13

400834A1

SWITCH

Transmission Enable

1шт.
