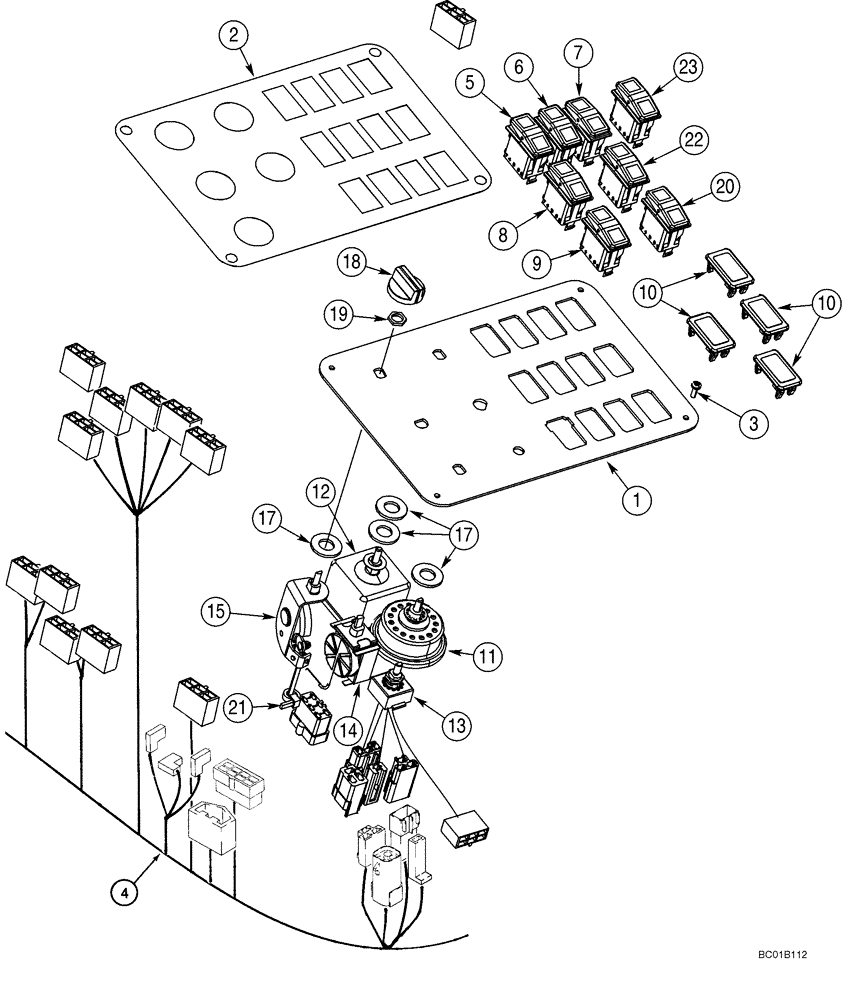

Запчасти Case 621D (04-04) - PANEL, CONTROL - SWITCHES - CAB (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WITH CAB

1шт.

1

197377A2

CONTROL PANEL

1шт.

2

283423A1

DECAL

Cab Switches

1шт.

3

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

4шт.

4

REF

INSTRUCTION

HARNESS Cab Main; SEE FIG 04-11

1шт.

5

374421A4

SWITCH

Declutch

1шт.

6

374422A2

SWITCH

Detent

1шт.

7

374427A2

SWITCH

Return To Travel/Return to Dig

1шт.

8

374431A2

SWITCH

Tans, Auto

1шт.

9

374429A2

WINDSHIELD WIPER SWI

Rear Wiper and Washer

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

6шт.

11

1994716C1

LIGHT SWITCH

Lamp

1шт.

12

197952A1

SWITCH

Windshield Wiper Front

1шт.

13

92100C2

SWITCH

Blower Motor

1шт.

14

A187954

SWITCH

SWITCH - thermostat

1шт.

250742A1

ELECTRIC CABLE

Incl. 15, 16

1шт.

15

1954651C2

CONTROL

1шт.

16

250739A1

CABLE,510mm L

1шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

5шт.

18

1994720C1

KNOB

Control

5шт.

19

109311H

JAM NUT

7/16 NF

1шт.

20

400834A1

SWITCH

Transmission

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

22

374425A2

SWITCH

Ride Control; If Used

1шт.

23

382375A2

SWITCH

Fan Reversing; If Used

1шт.

24

374433A3

SWITCH

Rocker; Backup Alarm Cancel; If Used; Not Illustrated

1шт.
