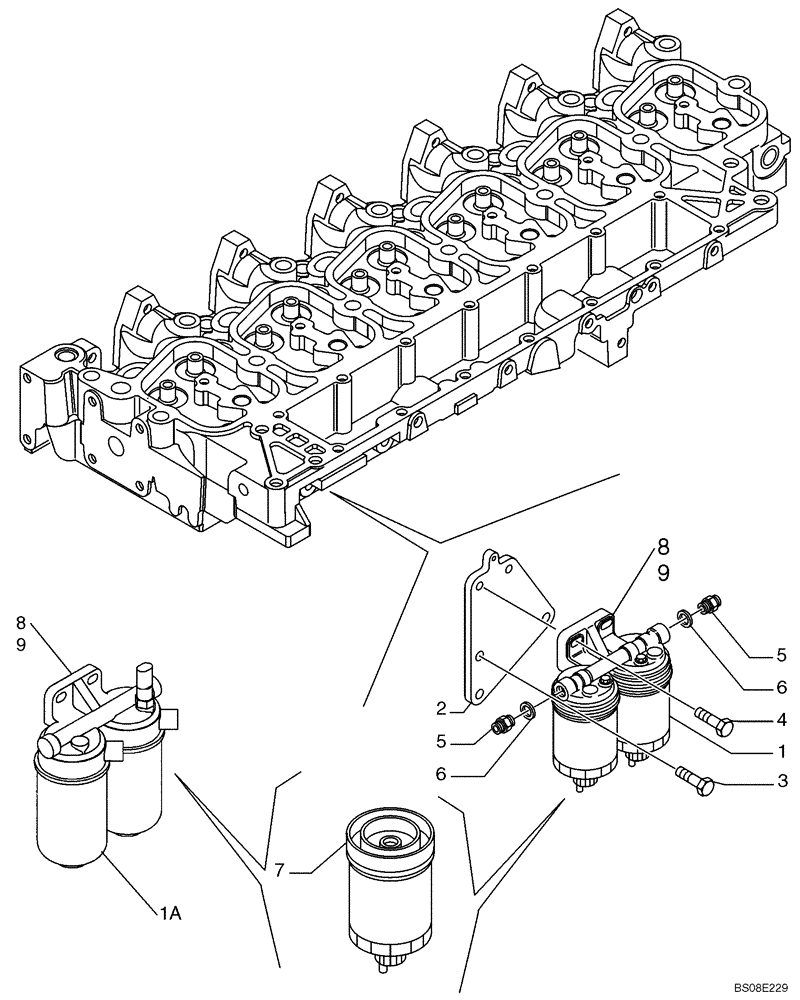

Запчасти Case 621D (03-13) - FUEL FILTER (03) - FUEL SYSTEM

1

2852750

FUEL FILTER

Head Components Not Serviced Separately

1шт.

1a

4844359

FUEL FILTER

Assy; Incl. Refs. 8, 9

1шт.

2

2852352

SUPPORT

1шт.

3

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

4

2852355

SCREW

M10X25

2шт.

5

4893833

HYD CONNECTOR

10X1.5

2шт.

6

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

D=14X20X1.5

1шт.

7

87803194

FUEL FILTER

Without Water Sensor

2шт.

8

NSS

NOT SOLD SEPARAT

Fuel Heater

2шт.

9

NSS

NOT SOLD SEPARAT

Fuel Temp. Switch

1шт.
