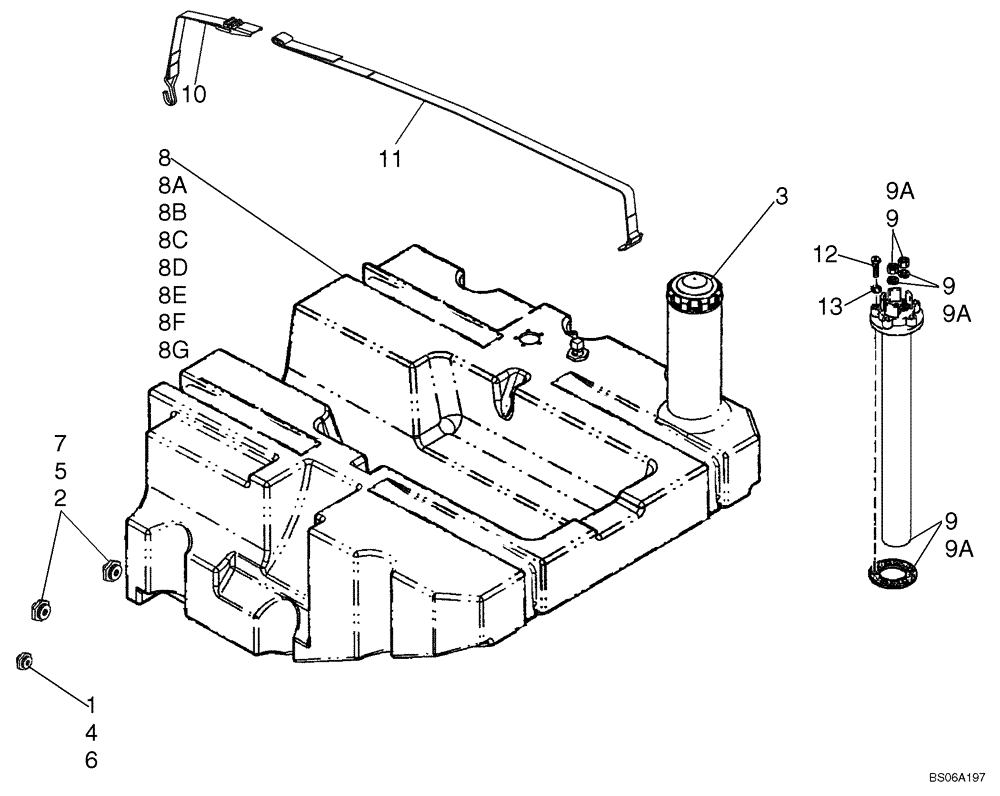

Запчасти Case 621D (03-04) - FUEL TANK FILLER - SENDER (03) - FUEL SYSTEM

1

87435505

FITTING

1/4 NPTF

2шт.

2

87435224

FITTING

3/8 NPTF

2шт.

3

8604443

FILLER CAP

1шт.

4

1251791C1

JAM NUT,3/4" - 16 LH Thread

1/4 NPTF

2шт.

5

282709A1

NUT

3/8 NPTF

2шт.

6

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

7

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

8

87400409

FUEL TANK

Incl. 1 - 7; 8A - 8H

1шт.

8a

8604441

FITTING

Ring Seal; Fuel Supply; Incl. 8B, 8C

2шт.

8b

8604446

O-RING

1шт.

8c

8604450

FITTING

1шт.

8d

8604442

FITTING

Ring Seal; Fuel Drain; Incl.8E - 8G

2шт.

8e

8604447

FITTING

3/8 NPTF

1шт.

8f

8604448

NUT

1/4 NPTF

1шт.

8g

8604449

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1/4 NPTF

1шт.

9

87542710

SENDER UNIT

Fuel Level; Incl. Ref. 9A; Replaces 328870A1

1шт.

9a

87617083

KIT

NUT, Pack; Replaces 355331A1

1шт.

10

366905A1

SECURING STRAP

Fuel Tank; Short

2шт.

11

366904A1

SECURING STRAP

Fuel Tank; Long

2шт.

12

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

5шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.
