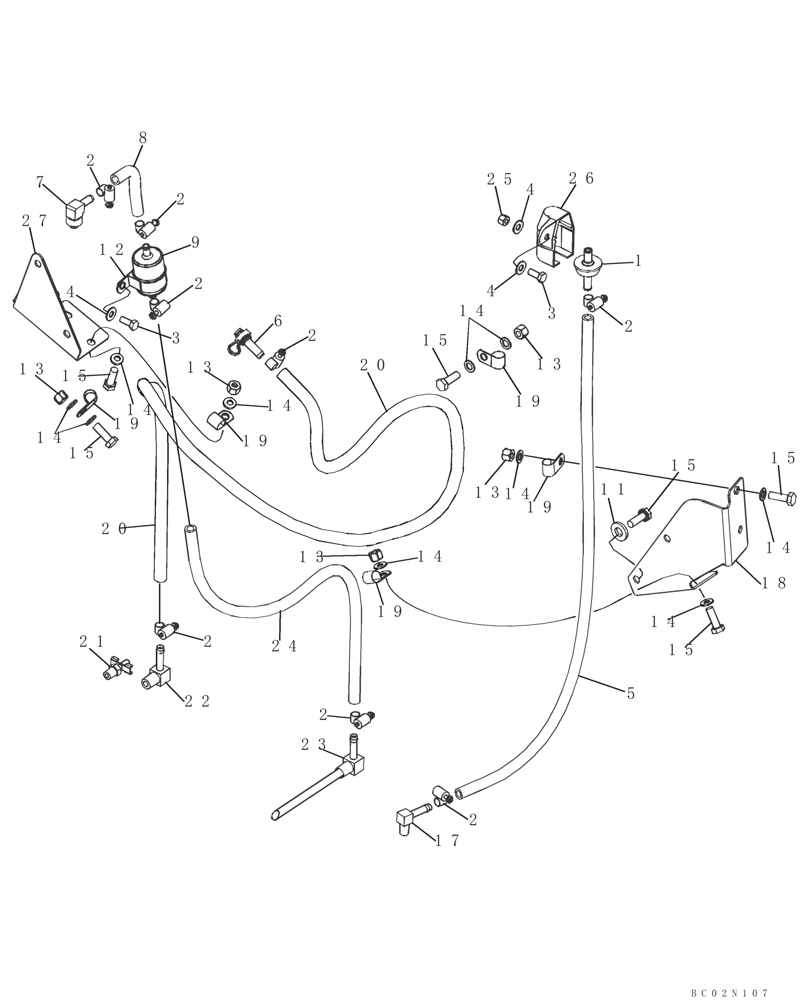

Запчасти Case 621D (03-03) - FUEL LINES - FILTER, IN-LINE FUEL (03) - FUEL SYSTEM

1

T103750

BREATHER

Breather

1шт.

2

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

8шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

5

8605550

HOSE

Breather; Cut From 32-012

1шт.

6

87408919

FITTING

1шт.

7

87400460

90 ELBOW

Incl. Ref. 7A

1шт.

7a

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Not Illustrated

1шт.

8

8605549

FUEL HOSE

Filter To Engine; Cut From 32-012

1шт.

9

87400394

FUEL FILTER

In-Line

1шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

12

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

12шт.

15

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

15

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

With Nylon Patch; Used With Ref 18

2шт.

17

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

18

87401020

BRACKET

Hose

1шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

5шт.

20

31-2281

HOSE,9.5 mm ID x 1828.80 mm

1828.8 mm ( 72 in ); Engine To Tank; Cut From 32-012

1шт.

21

217-92

COCK

Fuel Tank

1шт.

22

87017042

FITTING,90 Degree, 3/8" Hose x 3/8" NPTF Beaded

1шт.

23

87400438

FITTING

Fuel Takeoff

1шт.

24

31-1333

HOSE

736mm ( 29 in ); Tank To Filter; Cut From 32-012

1шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

26

186814A1

CAP

Fuel Tank Vent

1шт.

27

8603029

BRACKET

Hose

1шт.
