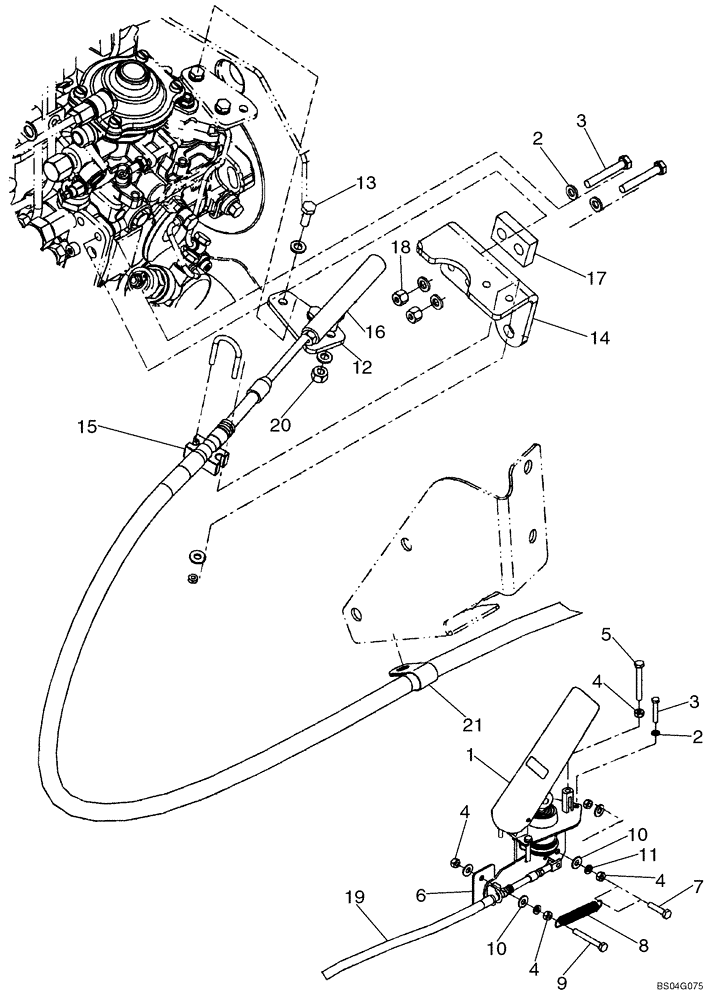

1
295157A1
PEDAL ASSY.
See Figure 03-02
1шт.
2
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
10шт.
3
827-6040
BOLT,Hex, M6 x 40mm, Cl 10.9
5шт.
4
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
5шт.
5
627-8065
BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9, Full Thd
1шт.
6
434626A1
PLATE
Throttle Spring
1шт.
8
L78607
SPRING
Extension
1шт.
9
827-8060
BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9
1шт.
10
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
4шт.
11
892-11008
LOCK WASHER,8mm ID
2шт.
12
86991770
LEVER
Throttle
1шт.
13
627-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd
2шт.
14
87400213
BRACKET
Throttle Support
1шт.
15
259529A1
CLAMP BRACKET
Accelerator Cable
1шт.
16
225619A1
BALL JOINT
1шт.
17
87400214
SPACER
Throttle Support
1шт.
18
832-10406
NUT,M6 x 1, Cl 8
2шт.
19
87400177
CABLE
1шт.
19
87360204
CABLE PULLING GRIP
Replaces 87400177
1шт.
20
231-4644
LOCK NUT,1/4"-28, GB
1шт.
21
515-23143
CLAMP,9/16", Insul, 3/8" Bolt
1шт.
7
827-8035
BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9
1шт.
