Запчасти Case 621D (02-30) - GEAR COVER - REAR HOUSING (02) - ENGINE

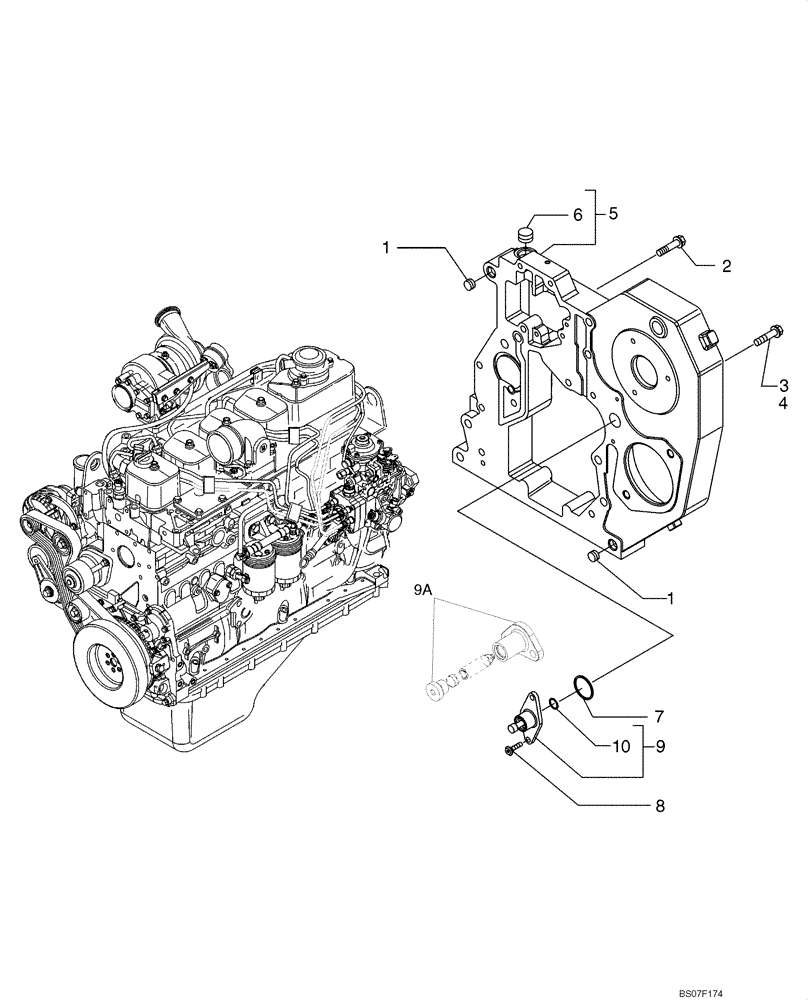

Схема запчастей Case 621D - (02-30) - GEAR COVER - REAR HOUSING (02) - ENGINE
7
3
9
5
2
9a
1
10
4
8
1
6

Артикул

Название

Примечание

Количество

1

4899026

DOWEL,M18 x 10

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

5шт.

4

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

5

2852320

COVER

- ASSY

1шт.

6

4899126

THREADED INSERT

D=22

1шт.

7

17278781

O-RING

21.95 ID x 1.78; Replaces 2852519

1шт.

8

4895355

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

9

2852515

PIN

ASSY, Timing Pin; If Used

1шт.

9a

2855287

HOUSING

Timing Pin Assy; If Used

1шт.

10

2852759

CIRCLIP

Retaining; Used W/ Timing Pin Housing 2852515; If Used

1шт.

Выбрано товаров: 11
