Запчасти Case 621D (02-29) - FLYWHEEL HOUSING (02) - ENGINE

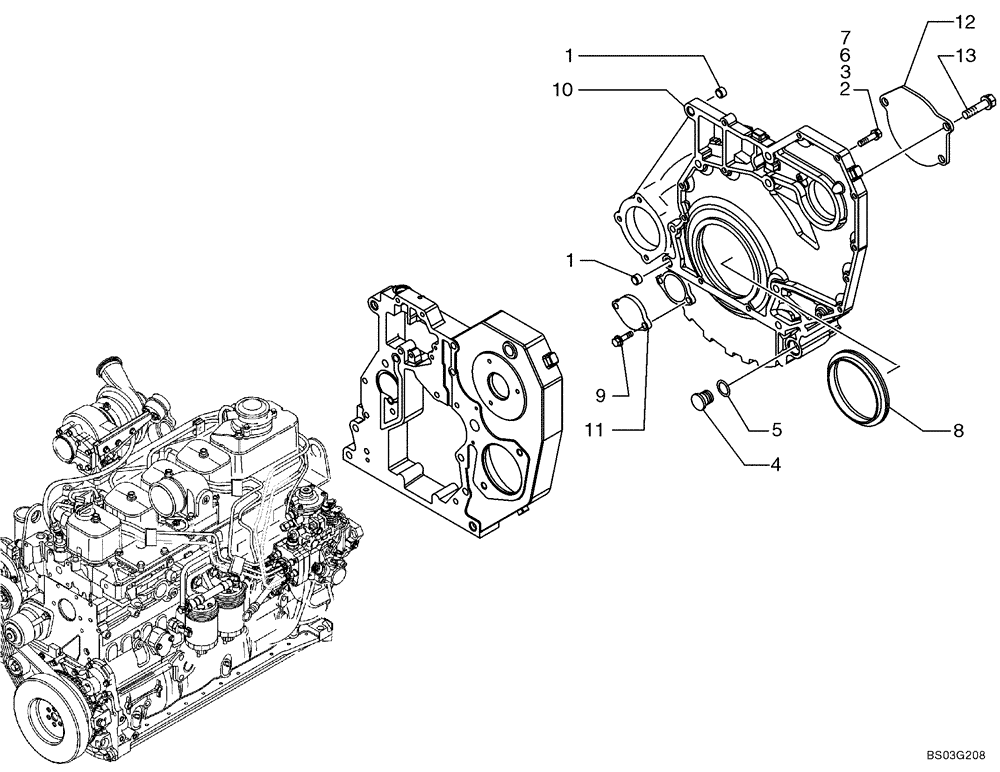

Схема запчастей Case 621D - (02-29) - FLYWHEEL HOUSING (02) - ENGINE
10
4
11
12
1
8
3
7
1
5
6
13
2
9

Артикул

Название

Примечание

Количество

1

4899026

DOWEL,M18 x 10

2шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

Replaces 2852325, Used On Some Models

2шт.

3

4899075

SCREW,Hex Flg, M10 x 1.5 x 40

Replaces 2852326, Used On Some Models

11шт.

4

4895378

BUTTON PLUG,M29.2

1шт.

5

4895379

O-RING,21.82mm ID x 3.53mm Width

Replaces O-Ring 2852329, Used On Some Models

1шт.

6

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

Replaces 2852327, Used On Some Models

5шт.

7

2852324

SCREW

3шт.

8

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

9

2852323

SCREW,M8 x 1.25 x 14mm

2шт.

10

2854741

COVER

Flywheel; Replaces 2852328, Used On Some Models

1шт.

11

4895358

COVER

1шт.

12

2854073

COVER

Fuel Pump Gear, 2 Bolt Holes; Replaces 2852025(Illustrated), 3 Bolt Holes; Used on Some Models; Incl. Ref. 12A

1шт.

12a

2854075

O-RING,0.103" Thk x 2.987" ID, -151

Not Illustrated

1шт.

13

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

2 If Used W/ Cover 2854073; 3 If Used W/ Cover 2852025

2-3шт.

Выбрано товаров: 14
