(09-73) - TRANSPORT OPTION (XT LOADER)

Запчасти Case 621D (09-73) - TRANSPORT OPTION (XT LOADER) (09) - CHASSIS

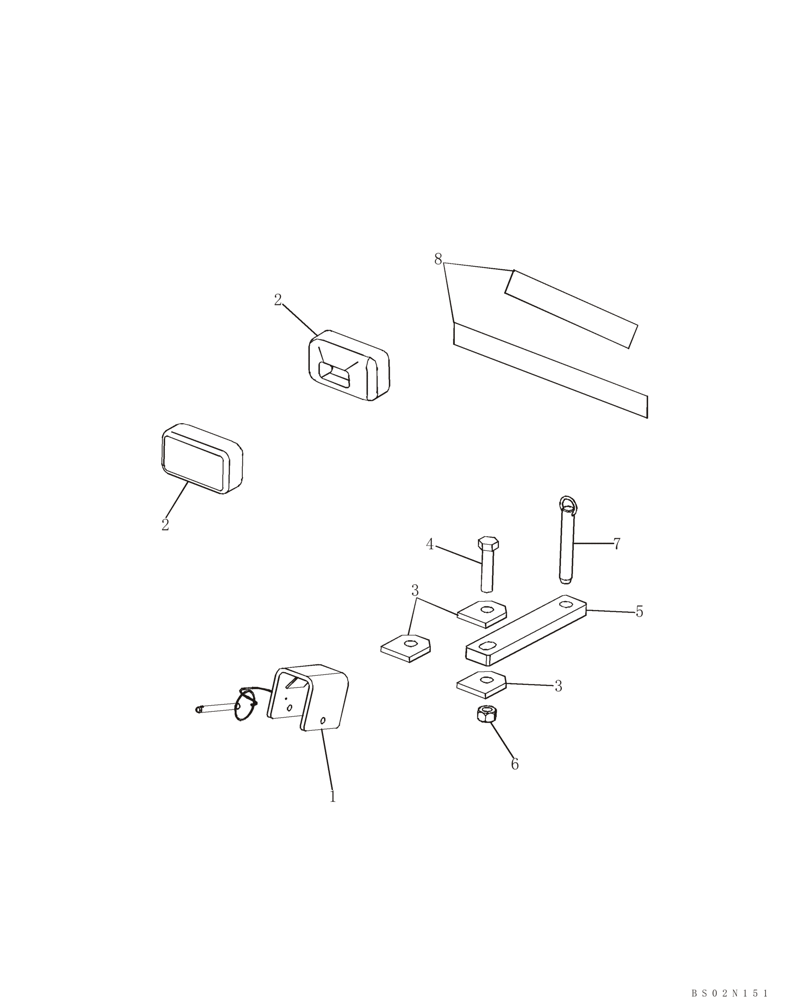

Схема запчастей Case 621D - (09-73) - TRANSPORT OPTION (XT LOADER) (09) - CHASSIS
3
2
bs02n151
4
2
1
6
5
3
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

ITALIAN AND GERMAN MODELS

1шт.

REF

INSTRUCTION

XT MODEL

1шт.

1

405537A1

LOCK ASSY

Lift Cylinder Stop; Light Cover

1шт.

2

372421A1

COVER

Light Cover

4шт.

3

191708A1

LUG

Transport Link

3шт.

4

827-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

1шт.

5

406603A1

LOCK ASSY

XT Attachment Lock

1шт.

6

829-1424

NUT,M24, Cl 10

1шт.

7

191705A1

PIN

75 x 2,5 lg

1шт.

8

198793A1

DECAL

Road Transport/Italy

2шт.
