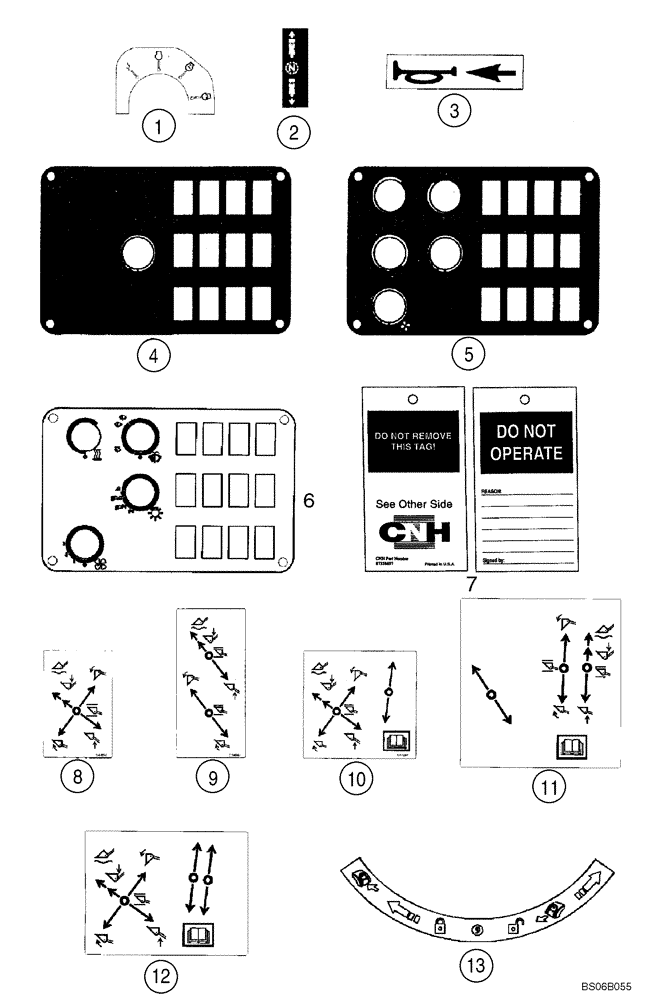

Запчасти Case 621D (09-64) - DECALS (09) - CHASSIS
7
4
2
8
13
9
12
1
10
3
6
11
5
№
Артикул
Название
Примечание
Количество
1
409155A1
DECAL
Ignition Switch Pattern
1шт.
2
1987168C1
DECAL
Direction/Speed
1шт.
3
195274A1
DECAL
Horn
1шт.
4
283426A1
DECAL
Canopy Switches
1шт.
5
283423A1
DECAL
Cab Switches; Heating and Air Conditioning
1шт.
6
283424A1
DECAL
Cab Switches; Heater
1шт.
7
321-4614
TAG
Do Not Operate; Not Illustrated; Replaced By 87358697
1шт.
7
87358697
TAG
DECAL Do Not Operate
1шт.
8
256421A2
DECAL
Single Lever; Two Spool
1шт.
9
256420A2
DECAL
Dual Lever; Two Spool
1шт.
10
256423A2
DECAL
Dual Lever; Three Spool
1шт.
11
376629A2
DECAL
Three Lever; Three Spool
1шт.
12
376628A2
DECAL
Three Lever; Four Spool
1шт.
13
8604713
DECAL
Air Cleaner Assy; Replaces 406136A1
1шт.
Выбрано товаров: 14
