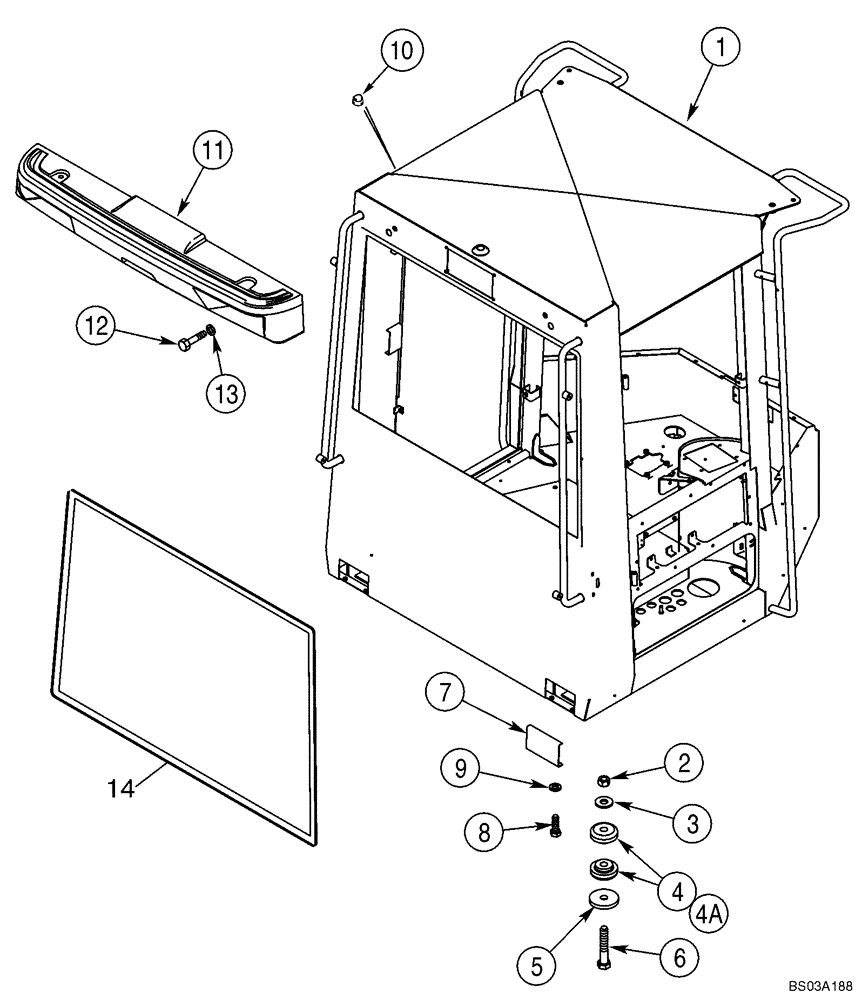

Запчасти Case 621D (09-61) - CANOPY, ROPS - MOUNTING (09) - CHASSIS

1

375376A2

CANOPY

Canopy; Frame

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

396-41094

WASHER,23.82mm ID x 57.15mm OD x 5.56mm Thk

4шт.

4

358981A1

RUBBER MOUNTING

Rear; Canopy Support

4шт.

4a

358982A1

RUBBER MOUNTING

Front; Canopy Support

4шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

Special

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

241301A2

COVER

Access

2шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

9

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

10

353-591

PLUG,2

1/ in 2

2шт.

11

321576A2

RETAINER

Rear Light

1шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

14

235905A1

CAB GLASS

Canopy, Rear Window

1шт.

15

372421A1

COVER

Cover; Light; German Models; Italian Models; Not Illustrated

4шт.
