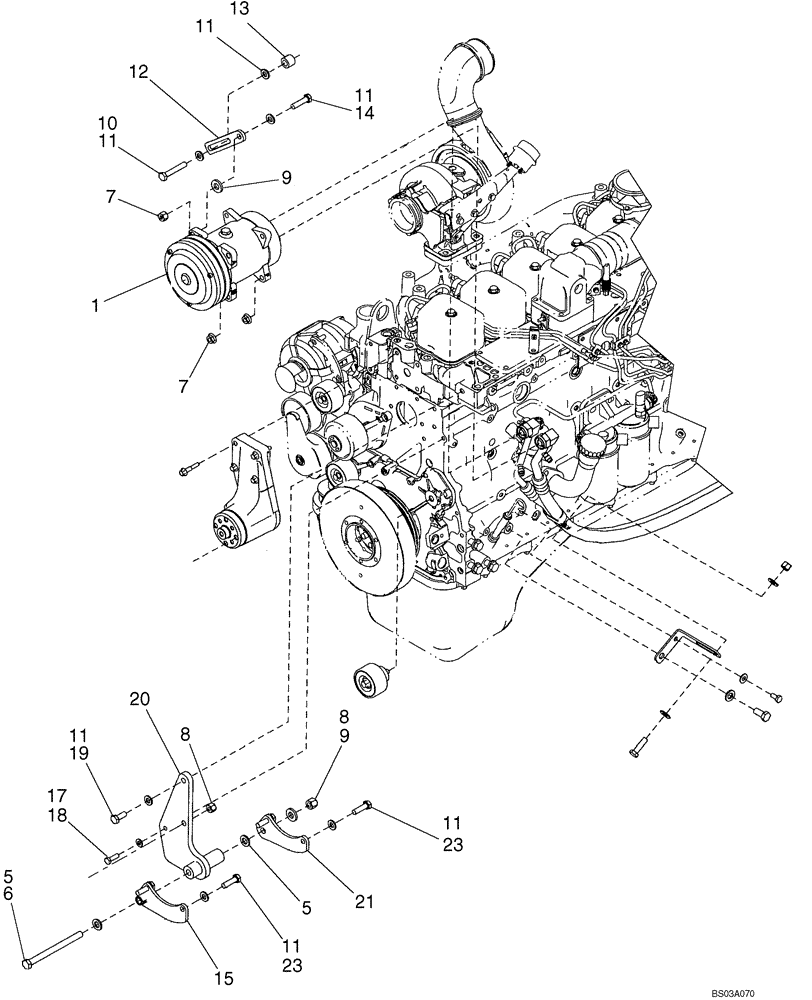

Запчасти Case 621D (09-57) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS

1

86983967

AIRCOND. COMPRESSOR,24V, W/ Clutch, W/ Pulley

Air Conditioning; Component Parts Not Serviced Separately

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

621D S/N JEE0135501 & AFTER (1/03)

1шт.

86983967C

CORE-COMPRESSOR

Return Number, AIR COMPRESSOR - for N.A. Only

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

6

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

1шт.

7

832-46410

NUT,M10 x 1.5, Cl 8

5шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

12

87306665

BRACKET

Freon; Replaces 84716C1

1шт.

13

86536116

SPACER

1шт.

14

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

15

87306662

BRACKET

Compressor; Replaces 87403164

1шт.

18

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

1шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

20

87306668

BRACKET

Compressor Mounting; Replaces 87408372

1шт.

21

87306658

BRACKET

Replaces 90-3554T1

1шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

Not Illustrated

1шт.

23

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

5шт.

10

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
