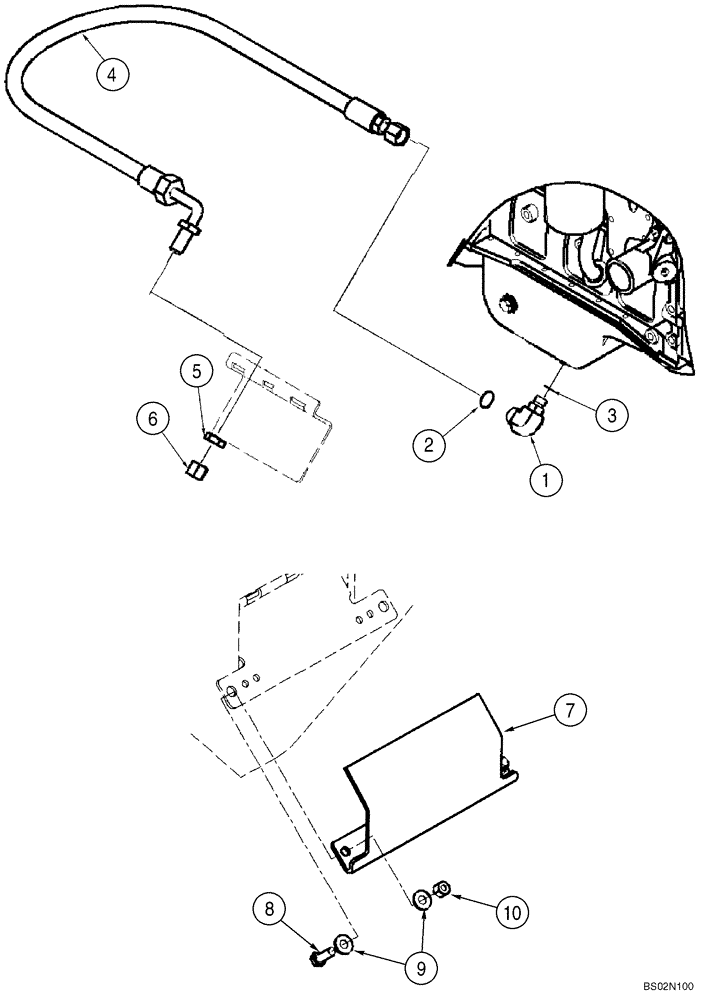

Запчасти Case 621D (02-20) - OIL PUMP, PAN - DRAIN LINE (02) - ENGINE

1

87426452

FITTING

90 deg, 16mm ORFS x M22 ORB; Incl. 2, 3

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

86990586

FLEXIBLE HOSE

1455 mm; Drain; Remote Oil

1шт.

5

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

6

218-756

CAP,37 Degree, 7/8"-14

1шт.

7

407632A1

COVER

Remote Drain

1шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
