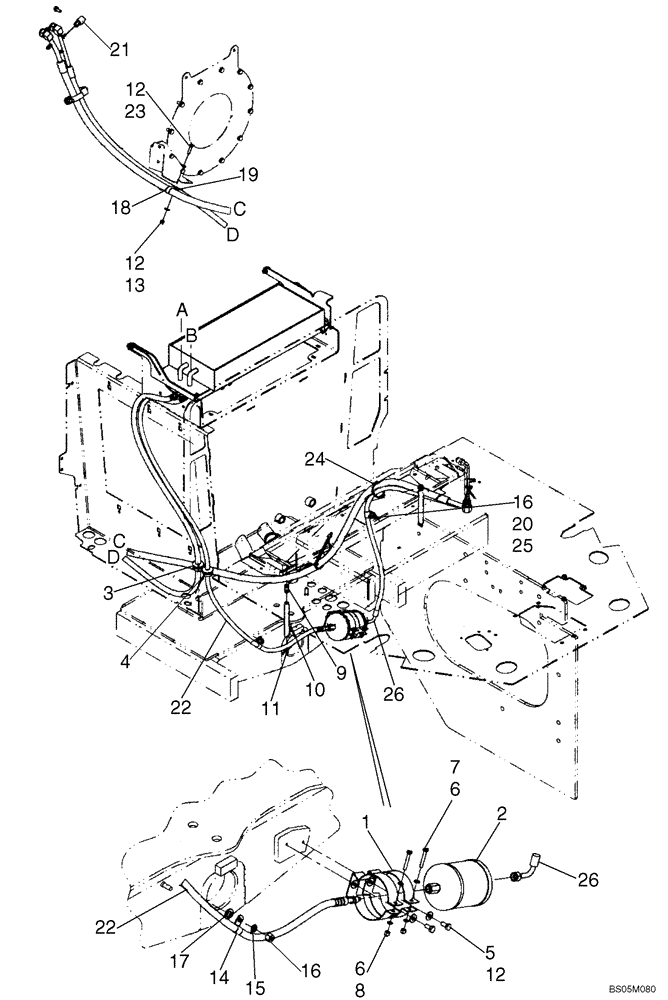

Запчасти Case 621D (09-54A) - AIR CONDITIONING HOSES (09) - CHASSIS

1

433723A1

CLAMP

Receiver Dryer

2шт.

2

295006A1

RECEIVER-DRYER

1шт.

3

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

4

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

5

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

1шт.

9

1250522C3

FITTING

Drain

2шт.

10

1977334C1

HOSE

Drain

2шт.

11

109239C2

CHECK VALVE

Drain

2шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

(15.9 mm)

1шт.

15

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

18

515-22254

CLAMP,1", Insul, 5/16" Bolt

(25.4 mm; M8 Bolt)

1шт.

19

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

(19 mm; M8 Bolt)

1шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

21

232948A1

SWITCH, A/C HIGH PRE

1шт.

22

407974A1

HOSE ASSY.

2044mm ( 80-1/2 in ); Condensor to Receiver Dryer

1шт.

23

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

25

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

(15.9mm; M12 Bolt)

1шт.

26

407961A2

HOSE

1058 mm lg; Receiver-Drier To Cab; Incl. 17A

1шт.
