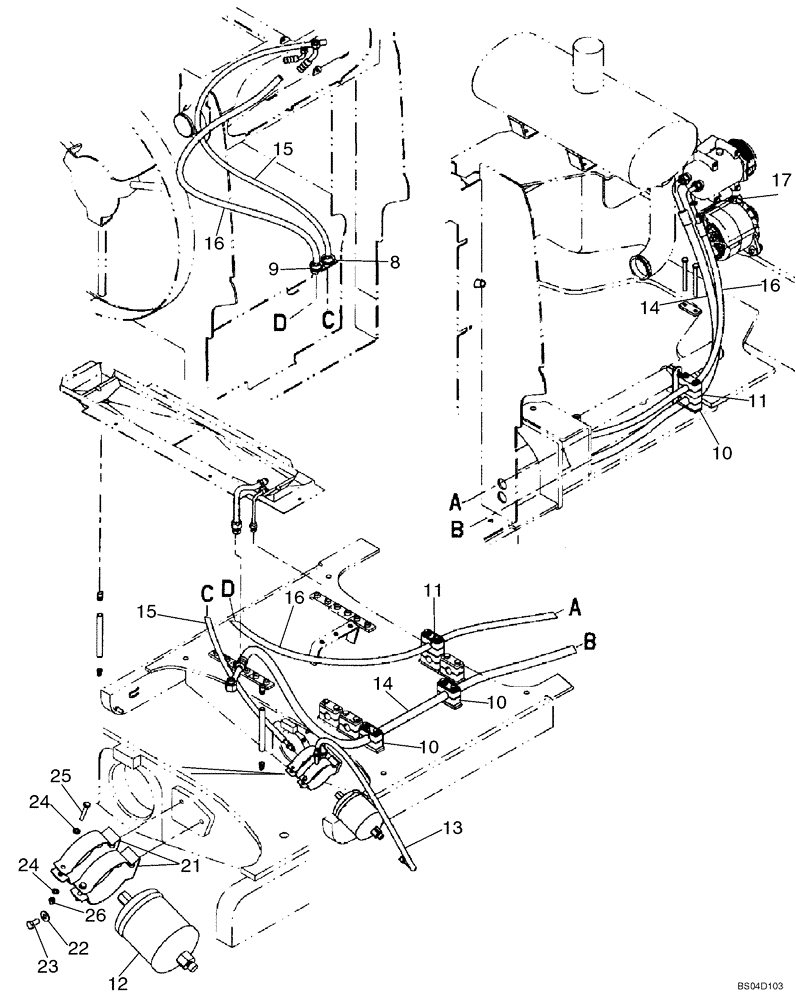

Запчасти Case 621D (09-54) - AIR CONDITIONING HOSES (09) - CHASSIS

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

8

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

9

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

10

367489A1

BLOCK

Mounting

3шт.

11

379374A1

BLOCK

2шт.

12

295006A1

RECEIVER-DRYER

134a

1шт.

13

407961A2

HOSE

1058 mm lg; Receiver-Drier To Cab; Incl. 33

1шт.

14

8500815

FLEXIBLE HOSE

3175 mm (125 in); Compressor To Cab Base; Incl. 14 - 16

1шт.

15

8500817

FLEXIBLE HOSE

1шт.

16

8500818

A/C HOSE

3725 mm (146-5/8 in); Compressor To Condenser; Incl. 4 - 11

1шт.

17

232948A1

SWITCH, A/C HIGH PRE

1шт.

21

433723A1

CLAMP

2шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

23

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

25

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

26

832-10406

NUT,M6 x 1, Cl 8

2шт.

27

1250522C3

FITTING

2шт.

28

1977334C1

HOSE

2шт.

29

109239C2

CHECK VALVE

Drain

2шт.

3630

367658A1

PLATE

Cover

1шт.

31

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.
