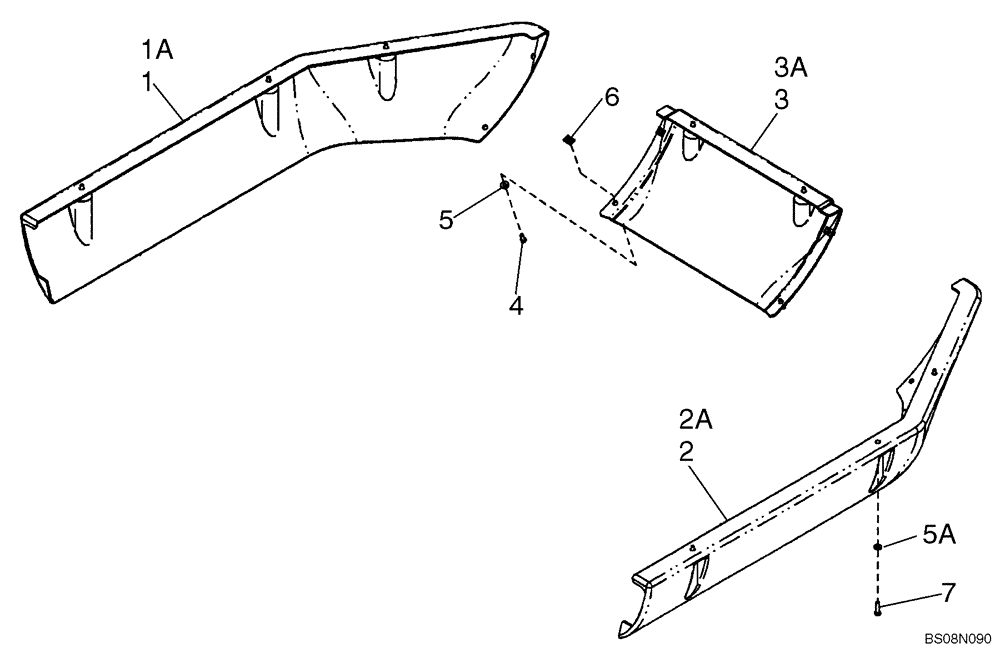

Запчасти Case 621D (09-37) - COVERS - CAB AND CANOPY, LOWER - IF USED (09) - CHASSIS

1

8501323

SKIRT

Left Hand, Tan, Approx. 9 in Tall

1шт.

1

8602515

SKIRT

Left Hand, Gray, Approx. 9 in Tall

1шт.

1a

387087A2

PLASTIC

Left Hand, Tan, Approx. 5.5 in Tall

1шт.

2

8501324

SKIRT

Right Hand, Tan, Approx. 9 in Tall

1шт.

2

8602514

SKIRT

Right Hand, Gray, Approx. 9 in Tall

1шт.

2a

387088A2

PLASTIC

Right Hand, Tan, Approx. 5.5 in Tall

1шт.

3

8501325

SKIRT

Center, Tan, Approx. 9 in Tall

1шт.

3

8602513

SKIRT

Center, Gray, Approx. 9 in Tall

1шт.

3a

387089A1

PLASTIC

Center, Tan, Approx 5.5 in Tall

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

5a

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

6

833-40308

SPRING NUT,M8, U

4шт.

7

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.
