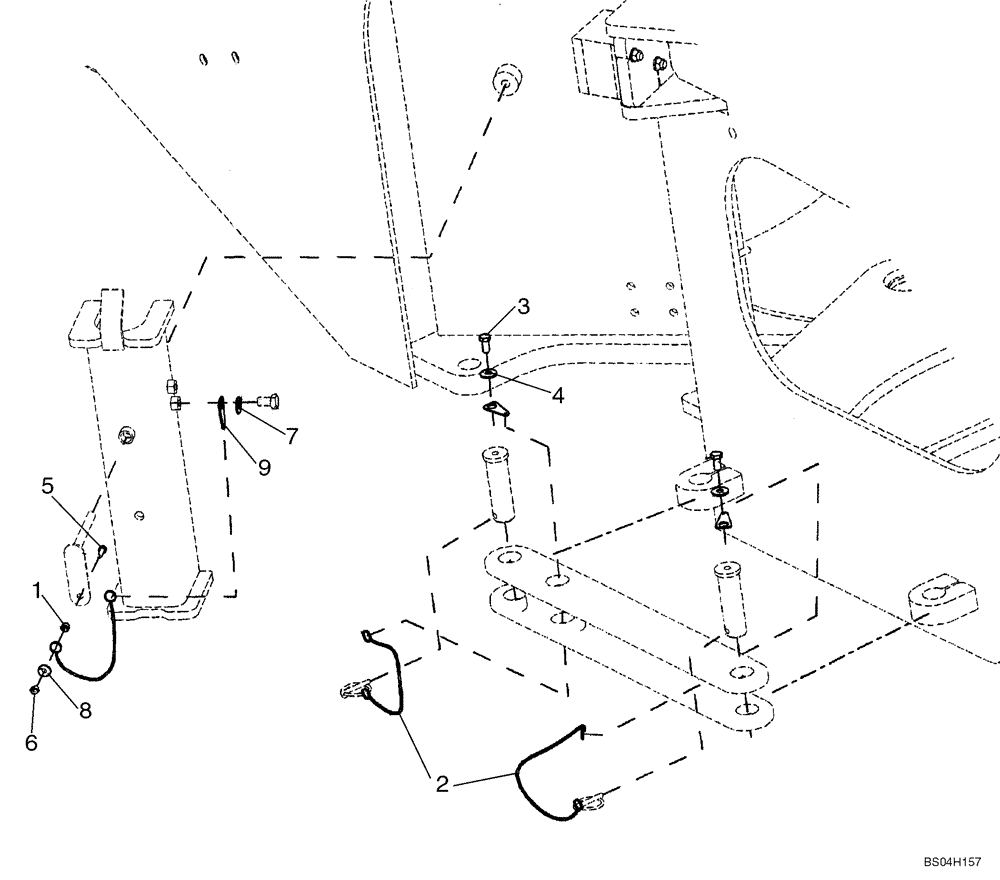

Запчасти Case 621D (09-29) - FRAME, FRONT- PIN TETHER MOUNTING (09) - CHASSIS

REF

INSTRUCTION

Z-BAR LOADER AND XT LOADER PIN TETHER MOUNTING

1шт.

1

324286A1

SPACER

1шт.

2

411739A1

CHAIN

3шт.

3

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

4

495-21044

WASHER,3/8"

(.438 x 1.0 x .083 in)

2шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

6

832-10406

NUT,M6 x 1, Cl 8

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

9

L300295

RETAINER

3шт.
