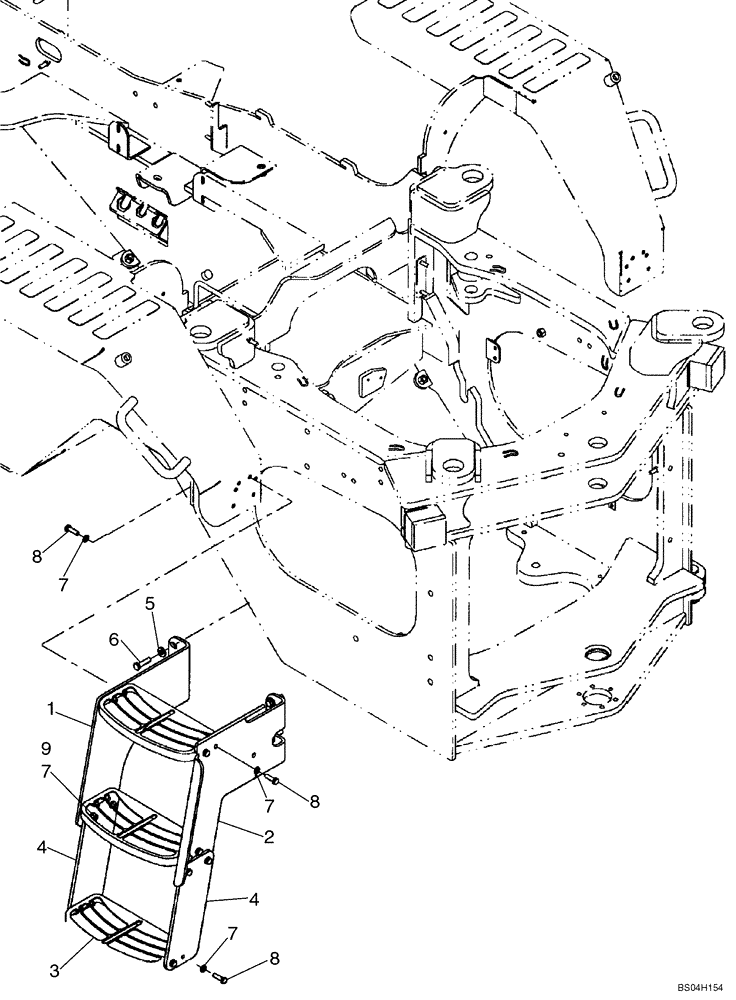

Запчасти Case 621D (09-25A) - FENDERS, REAR - STEPS - IF USED (09) - CHASSIS

REF

INSTRUCTION

RIGHT HAND SIDE

1шт.

1

87434611

BRACKET

RH Support; Rear; Case Power Tan

1шт.

2

87434610

BRACKET

RH Support; Front; Case Power Tan

1шт.

3

87434472

STEP

Stamped Steel

3шт.

4

87434096

STRAP

Lower Entry

2шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

6

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

16шт.
