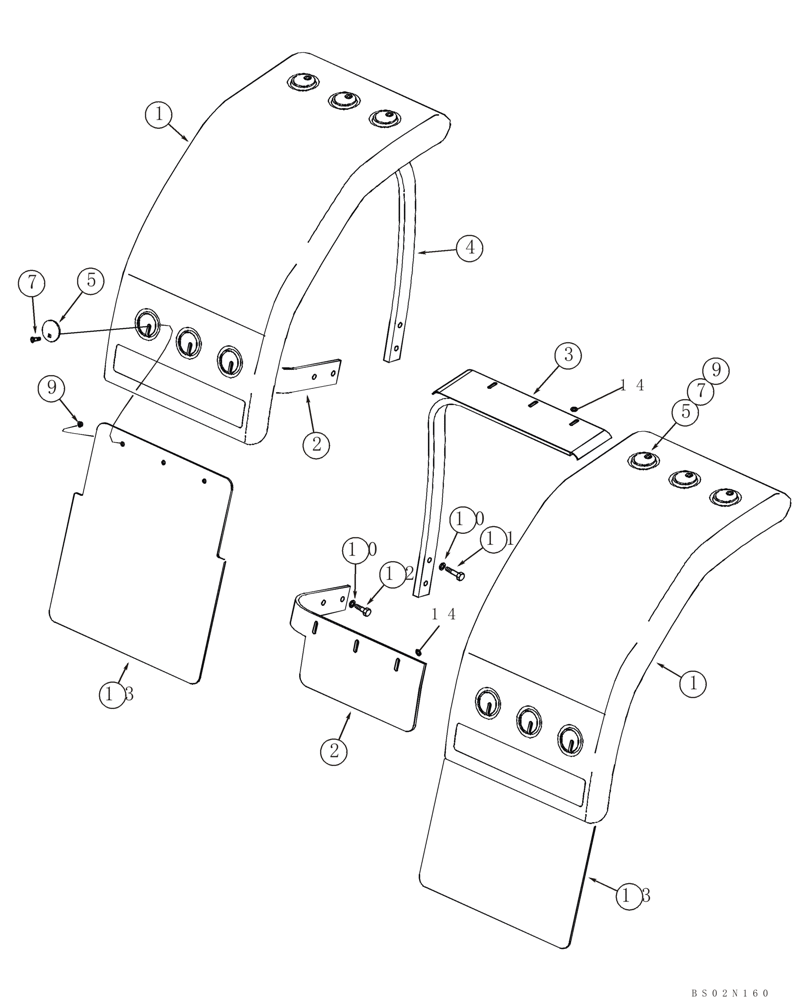

Запчасти Case 621D (09-23) - FENDERS, FRONT (09) - CHASSIS

REF

INSTRUCTION

WIDE

1шт.

1

402794A2

FENDER

2шт.

2

391519A1

BRACKET

Horizontal, LH

1шт.

3

391520A1

BRACKET

Vertical; Right Hand

1шт.

4

391522A1

BRACKET

Vertical; Left Hand

1шт.

5

345357A1

SQ HOLE WASHER

2-1/2

12шт.

6

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

6шт.

7

612-7

CARRIAGE BOLT,M8 x 40mm, Class 4.6

M8 x 40; 4.6

6шт.

8

397222A1

BRACKET

Horizontal, RH

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

11

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

13

409456A1

MUDFLAP

2шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.
