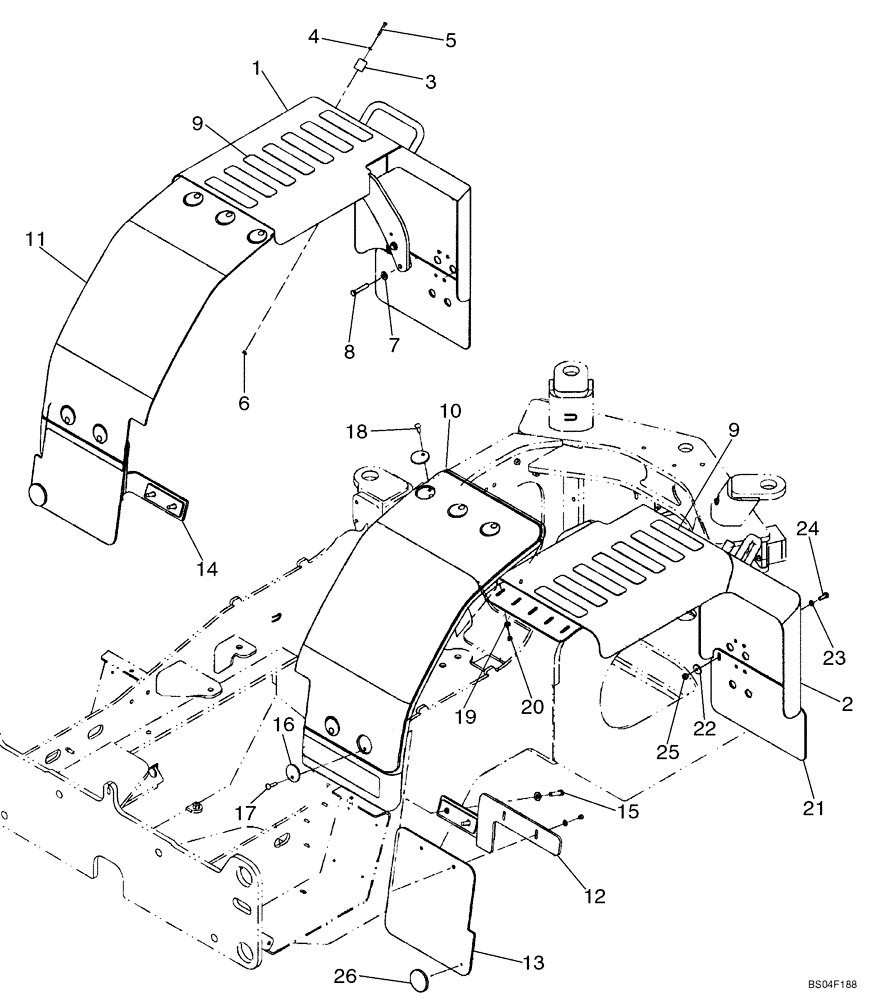

Запчасти Case 621D (09-20A) - FENDERS, REAR- WIDE - IF USED (09) - CHASSIS

REF

INSTRUCTION

TIER II WIDE FENDERS

1шт.

1

87434927

SUPPORT ASSY.

Left Side

1шт.

2

87438372

SUPPORT ASSY.

Right Side

1шт.

3

L126483

BUMPER

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

2шт.

6

832-10406

NUT,M6 x 1, Cl 8

2шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

8шт.

8

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

9

D55216

PAD,2" x 9"

2 x 9 in

14шт.

10

402437A2

FENDER

Right Side

1шт.

11

402440A2

FENDER

Left Side

1шт.

12

394419A1

BRACKET

Right Side

1шт.

13

87451033

MUDFLAP

Rear

2шт.

14

394423A1

BRACKET

Left Side

1шт.

15

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

16

345357A1

SQ HOLE WASHER

2-1/2

10шт.

17

612-7

CARRIAGE BOLT,M8 x 40mm, Class 4.6

M8 x 40; 4.6

4шт.

18

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

6шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

21

87436096

MUDFLAP

Rear

2шт.

22

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

4шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

26

76034682

REFLECTOR

80mm Diameter

2шт.

24

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
