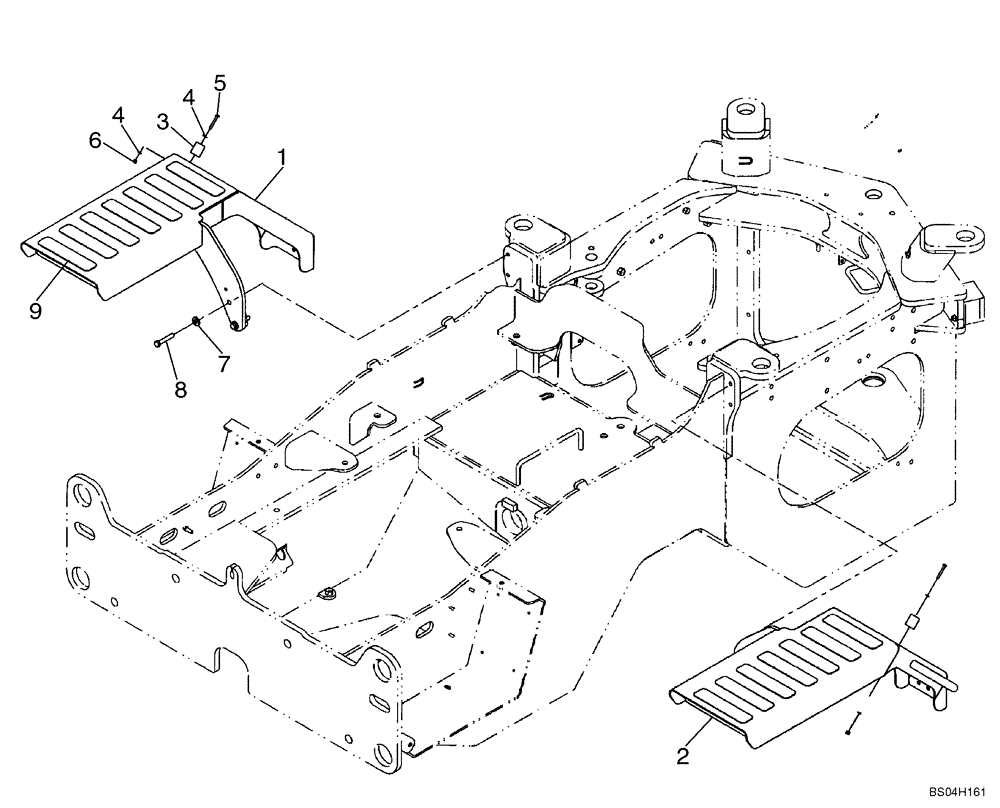

Запчасти Case 621D (09-19A) - FENDERS, REAR - IF USED (09) - CHASSIS

REF

INSTRUCTION

STANDARD

1шт.

1

87438358

SUPPORT ASSY.

Left Hand

1шт.

2

87438359

SUPPORT ASSY.

Right Hand

1шт.

3

L126483

BUMPER

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

2шт.

6

832-10406

NUT,M6 x 1, Cl 8

2шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

8

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

9

D55216

PAD,2" x 9"

2 x 9 in

14шт.
