(09-18B) - COVERS - BATTERY BOX - WIDE FENDERS - IF USED

Запчасти Case 621D (09-18B) - COVERS - BATTERY BOX - WIDE FENDERS - IF USED (09) - CHASSIS

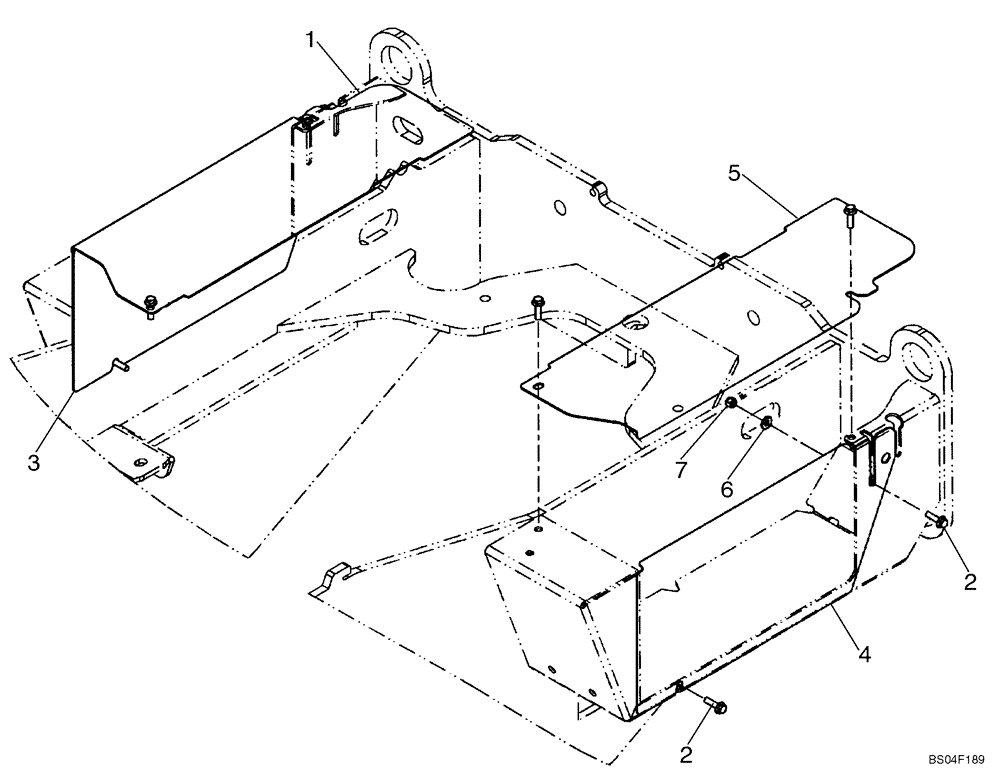

Схема запчастей Case 621D - (09-18B) - COVERS - BATTERY BOX - WIDE FENDERS - IF USED (09) - CHASSIS
1
2
3
5
4
2
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

TIER II; USED WITH WIDE FENDERS

1шт.

1

87447065

COVER

Battery Box; Right Side

1шт.

2

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

8шт.

3

87450695

COVER

Battery Cover; Right Side

1шт.

4

87450694

COVER

Battery Cover; Left Side

1шт.

5

87447064

COVER

Battery Cover; Left Side

1шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3mm

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
