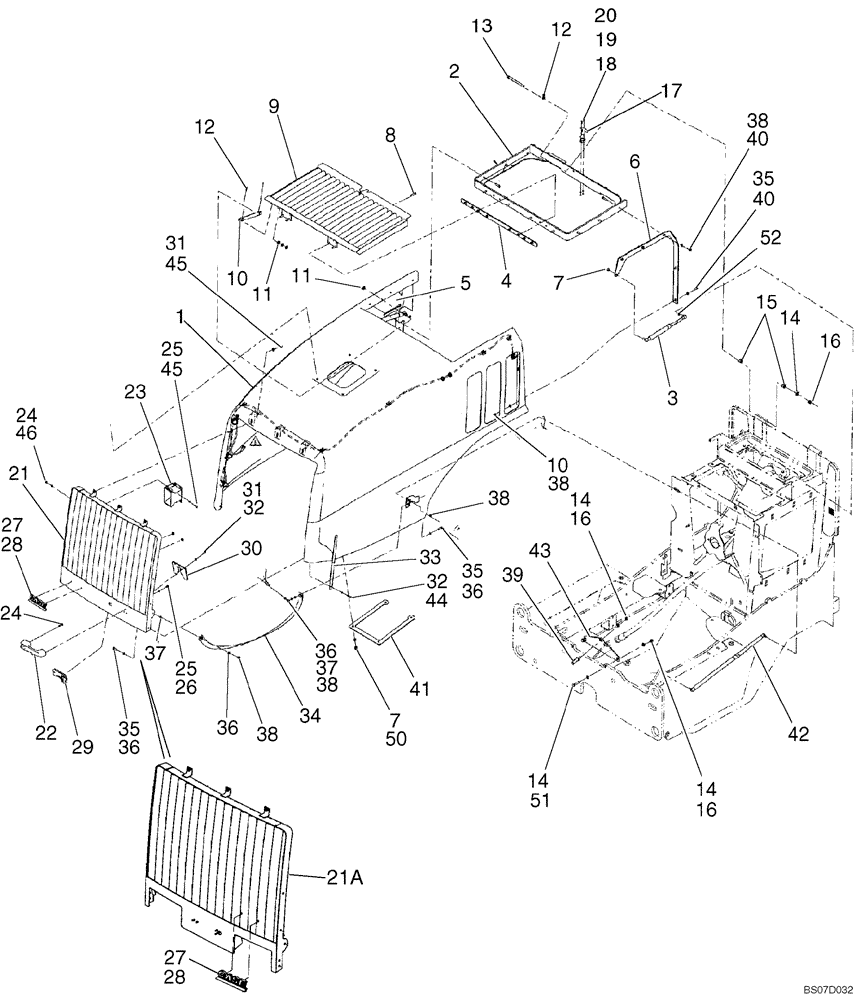

Запчасти Case 621D (09-16) - HOOD (09) - CHASSIS

1

387792A5

HOOD ASSY.

Tan; Replaced By 8603074

1шт.

1

8603074

HOOD

Tan/CE Grey; Replaced By 87432251

1шт.

1

87432251

HOOD

Tan/CE Grey

1шт.

2

8603198

SUPPORT ASSY.

Hood

1шт.

3

361456A1

GAS STRUT

2шт.

4

382712A2

PLATE ASSY.

1шт.

5

392349A2

BACK PLATE

Left Hand

1шт.

6

392351A2

BACK PLATE

Right Hand

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

8

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

14шт.

9

8603801

SCREEN

Top; Replaced By 87451621

1шт.

9

87451621

SCREEN

SCREEN Top; Replaces 8603801

1шт.

10

390606A2

BAR

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

12

733-3220

COTTER PIN,M3.2 x 20

2шт.

13

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

2шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

9шт.

15

382495A1

BUSHING

4шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

3-4шт.

17

384774A1

LATCH

1шт.

18

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

20

824-1405

NUT,M5, Cl 5

2шт.

21

446096A1

GRILLE

Rear; Flat Bottom; If Used

1шт.

21a

87445513

GRILLE

Rear; Notched Bottom; If Used

1шт.

22

60-7083T1

HANDLE

1шт.

23

D121972

ALARM

Backup

1шт.

24

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

27

186989A1

EMBLEM

1шт.

28

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

29

366176A2

LATCH

Hood

1шт.

30

409274A1

PLATE

Hood Latch; Lower Notch Width 76mm; If Used

1шт.

30

87445869

PLASTIC

Hood Latch; Lower Notch Width 60mm; If Used

1шт.

31

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

7шт.

32

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

10шт.

33

444931A1

PLATE

Backing; Rear Grille

2шт.

34

407199A1

STRAP

Hood Pull

1шт.

35

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

37

408460A1

SPACER

2шт.

38

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

39

301081A1

BOLT

Bolt, Striker

1шт.

40

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

41

408196A1

PLATE

1шт.

42

398767A1

GAS STRUT

1шт.

43

86992361

PLATE

Striker Mount; Tan; If Used

1шт.

43

87451013

PLATE

PLATE Striker Mount; Black; If Used

1шт.

43a

8603011

PLATE

If Used

1шт.

44

892-1006

LOCK WASHER,M6

6шт.

45

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

7шт.

46

832-10406

NUT,M6 x 1, Cl 8

4шт.

50

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

51

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

52

892-11010

LOCK WASHER,M10

2шт.

53

832-46412

NUT,M12 x 1.75, Cl 8

If Used

1шт.
