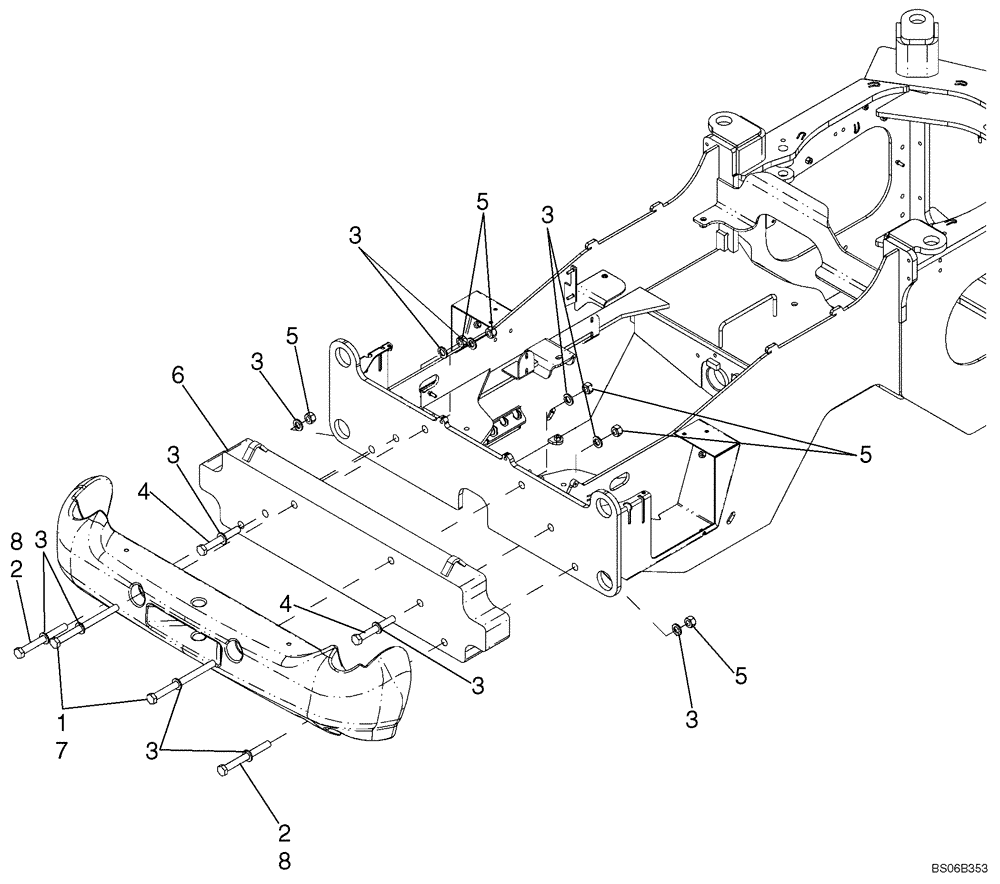

Запчасти Case 621D (09-15E) - COUNTERWEIGHTS - IF USED (09) - CHASSIS

REF

INSTRUCTION

IF USED; ADDITIONAL CWT PLATE

1шт.

1

827-24310

BOLT,Hex, M24 x 3 x 310mm, Cl 10.9

M24 x 310; 10.9

2шт.

2

827-24230

BOLT,Hex, M24 x 3 x 230mm, Cl 10.9

M24 x 230; 10.9

2шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

4

827-24180

BOLT,Hex, M24 x 3 x 180mm, Cl 10.9

M24 x 180; 10.9

2шт.

5

829-1424

NUT,M24, Cl 10

6шт.

6

87516883

COUNTERWEIGHT

ADDITIONAL CWT PLATE 412kg (908lb)

1шт.

7

87306677

BOLT,Hex, M24 x 380mm, Cl 10.9

BOLT M24 x 380

2шт.

8

827-24270

BOLT,Hex, M24 x 3 x 270mm, Cl 10.9

2шт.
