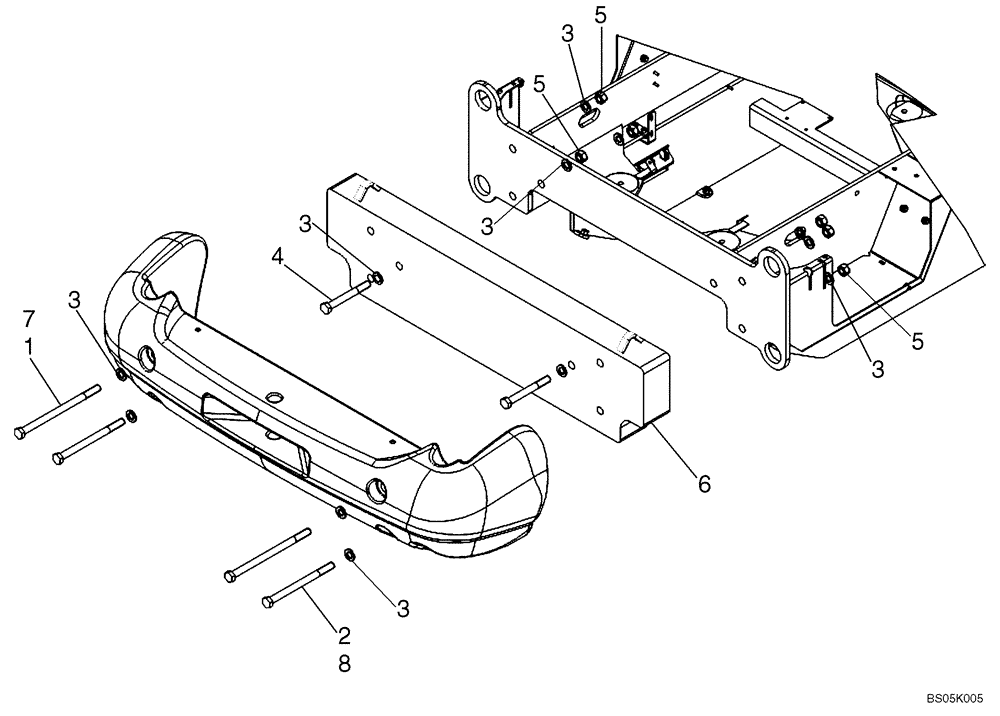

Запчасти Case 621D (09-15D) - COUNTERWEIGHTS - IF USED (09) - CHASSIS

REF

INSTRUCTION

USE WITH REAR CHASSIS 87453903

1шт.

1

827-24330

BOLT,Hex, M24 x 3 x 330mm, Cl 10.9

M24 x 330; 10.9

2шт.

2

827-24230

BOLT,Hex, M24 x 3 x 230mm, Cl 10.9

M24 x 230; 10.9

2шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

4

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

2шт.

5

829-1424

NUT,M24, Cl 10

6шт.

6

87306424

COUNTERWEIGHT

367kg (810lb)

1шт.

7

87306677

BOLT,Hex, M24 x 380mm, Cl 10.9

BOLT M24 x 380

2шт.

8

827-24270

BOLT,Hex, M24 x 3 x 270mm, Cl 10.9

2шт.
