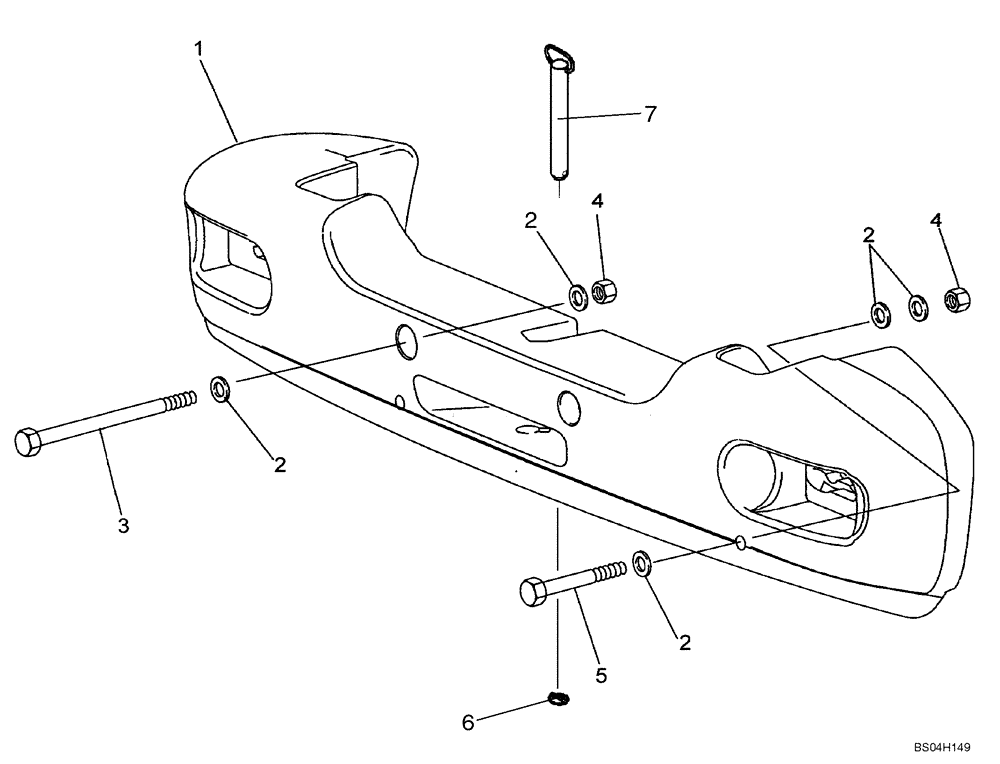

Запчасти Case 621D (09-15C) - COUNTERWEIGHTS/HITCH - IF USED (09) - CHASSIS

1

414419A1

WEIGHT

1452kg (3200 lb)

1шт.

2

827-24190

BOLT,Hex, M24 x 3 x 190mm, Cl 10.9

2шт.

3

827-24270

BOLT,Hex, M24 x 3 x 270mm, Cl 10.9

2шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

8шт.

5

829-1424

NUT,M24, Cl 10

4шт.

6

19-1041

LOCK PIN,7/16" x 2"

1/4 KLICK

1шт.

7

87516266

PIN,44.45mm OD

PIN Hitch

1шт.
