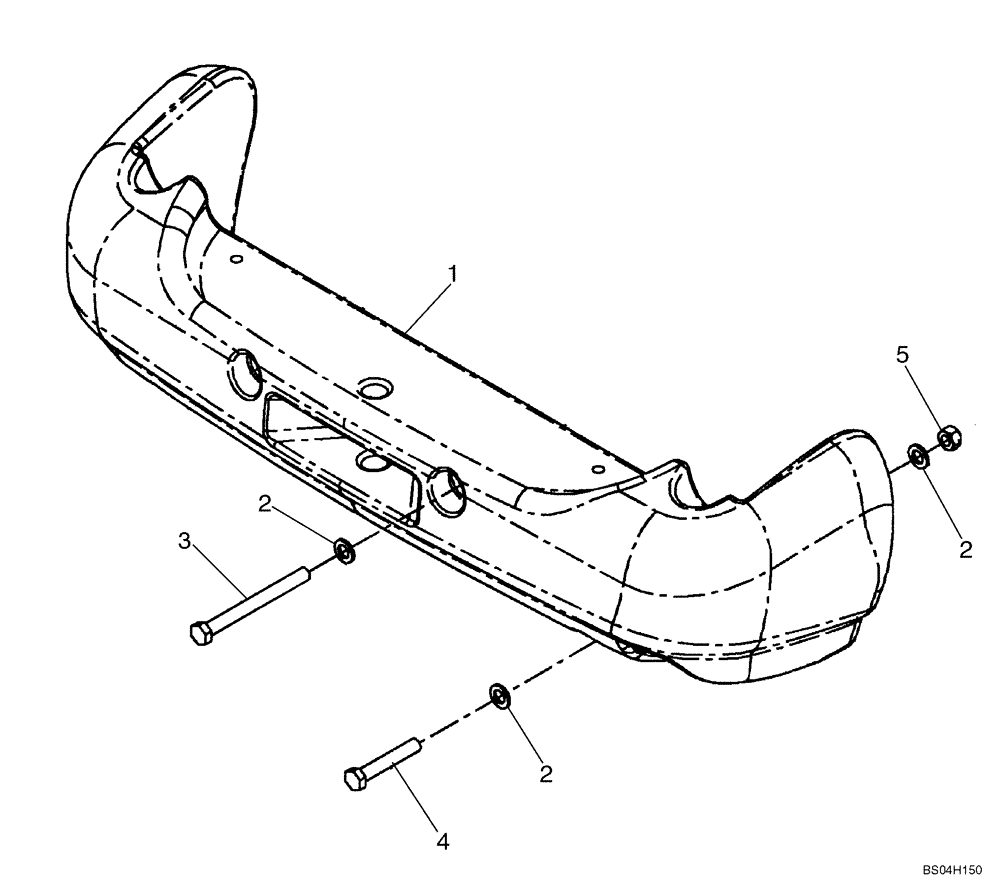

Запчасти Case 621D (09-15A) - COUNTERWEIGHTS - IF USED (09) - CHASSIS

1

87446241

WEIGHT

Counterweight; 844kg (1860 lb)

1шт.

2

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

8шт.

3

827-24250

BOLT,Hex, M24 x 3 x 250mm, Cl 10.9

2шт.

4

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

2шт.

5

829-1424

NUT,M24, Cl 10

4шт.

87308200

PLASTIC PLUG

Not Illustrated

2шт.
