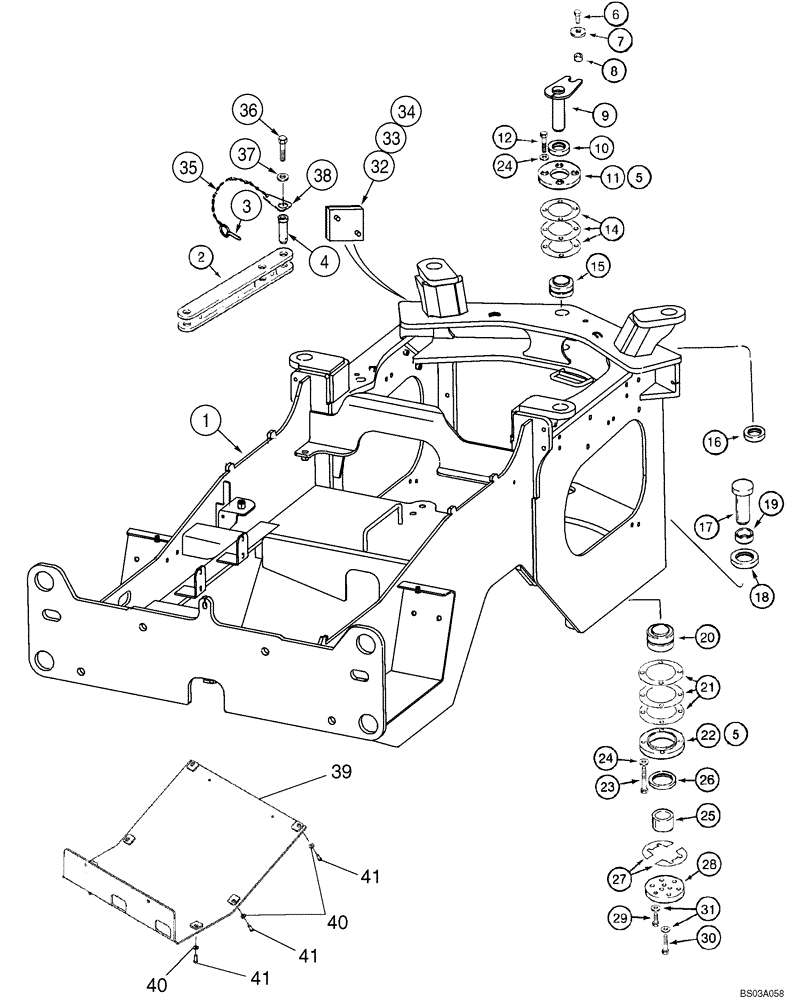

Запчасти Case 621D (09-11) - FRAME, REAR - PIVOT - IF USED (09) - CHASSIS

1

86990023

CHASSIS

1шт.

2

412067A1

LOCKING BAR

Rear; Transport and Service

1шт.

3

A30338

PIN

2шт.

4

126268A1

PIN,31.8mm OD x 108mm L

Link

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

7

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

1шт.

8

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Upper Pin

1шт.

9

87401084

PIN

Upper Pivot

1шт.

10

391281A1

SEAL

Upper; Articulation Plate

1шт.

11

391280A1

RETAINER

Upper Pivot

1шт.

12

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Not Illustrated

4шт.

14

L118987

SHIM,0.1mm Thk

(.004") Upper pivot

1шт.

14

L119202

SHIM,0.25mm Thk

(.010") Upper pivot

1шт.

14

L118986

SHIM,0.5mm Thk

(.020") Upper pivot

1шт.

15

391276A1

TAPERED BEARING,57.15mm ID x 96.84mm OD x 42.59mm W

Upper Pivot

1шт.

16

391278A1

SEAL

Lower; Upper Articulation Plate

1шт.

17

356201A1

PIN

Lower Pivot

1шт.

18

356200A1

SPACER

Upper; Lower Pivot Bearing

1шт.

19

356187A1

SEAL

Upper; Lower Articulation Plate

1шт.

20

391359A1

TAPERED BEARING,63.5mm ID x 112.71mm OD x 60.91mm W

Lower Pivot

1шт.

21

356191A1

SHIM

0,10 mm (0,004 in); Lower Pivot

1шт.

21

356197A1

SHIM

0,25 mm (0,010 in); Lower Pivot

1шт.

21

356198A1

SHIM,114mm ID x 190mm OD x 0.50mm Thk

0,50 mm (0,020 in); Lower Pivot

1шт.

22

356192A1

RETAINER

Lower Pivot

1шт.

23

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

17шт.

25

87613420

SPACER,63.54mm ID x 79.4mm OD x 62.47mm L

Lower; Pivot Bearing; Replaces 356199A1

1шт.

26

356210A1

SEAL

Lower; Pivot

1шт.

27

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

(.004") One half; Lower plate

2шт.

27

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

(.010") One half; Lower plate

2шт.

27

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

(.020") One half; Lower plate

2шт.

28

362089A1

PLATE

Lower Pin

1шт.

29

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

30

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

3шт.

31

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

17шт.

32

364193A1

DAMPER

2шт.

33

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

35

411739A1

CHAIN

315 mm (12-3/8 in)

2шт.

36

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

37

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

38

L300295

RETAINER

2шт.

39

86994488

SKID PLATE

1шт.

40

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

6шт.

41

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.
