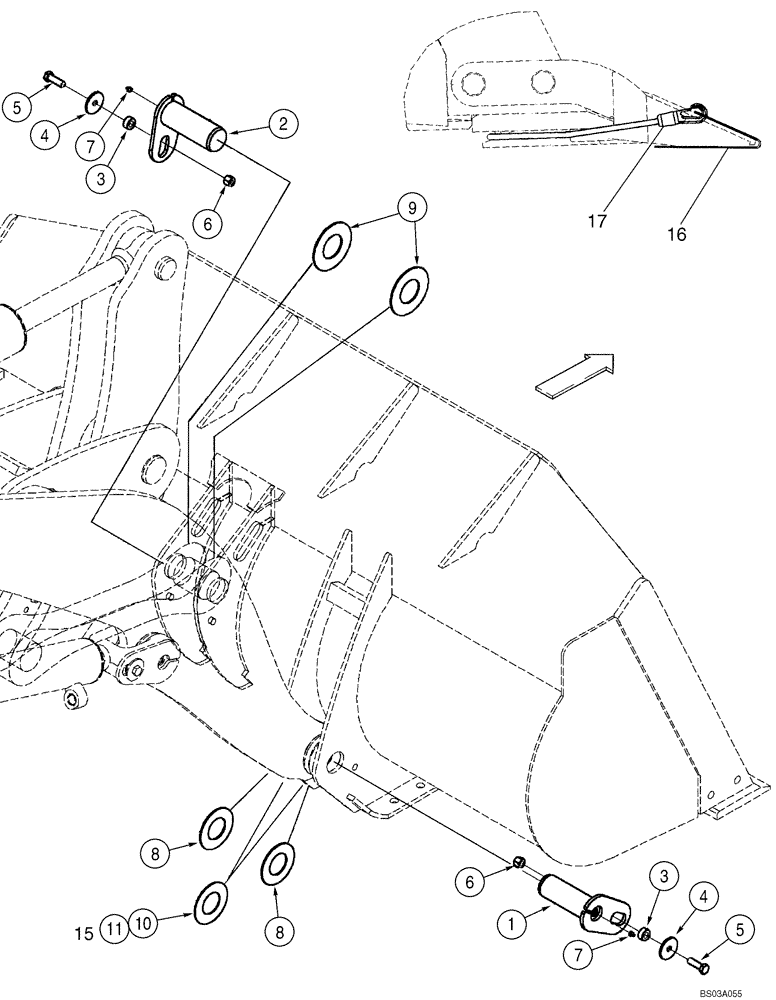

Запчасти Case 621D (09-07) - BUCKETS - ATTACHMENT (Z BAR LOADER) (09) - CHASSIS

REF

INSTRUCTION

Z-BAR LOADER - IF USED

1шт.

1

361139A2

PIN ASSY.,69.8mm OD x 182mm L

Bucket

1шт.

2

375326A2

PIN ASSY.,76.2mm OD x 184mm L

Lift Arm

2шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

3шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

3шт.

6

832-10416

NUT,M16 x 2, Cl 8

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

8

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

1шт.

9

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

1шт.

10

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

1шт.

11

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

1шт.

12

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

1шт.

13

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

1шт.

14

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

1шт.

15

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

2шт.

16

410032A1

GUARD

Bucket

1шт.

17

414121A1

STRAP

Bucket Guard

1шт.
