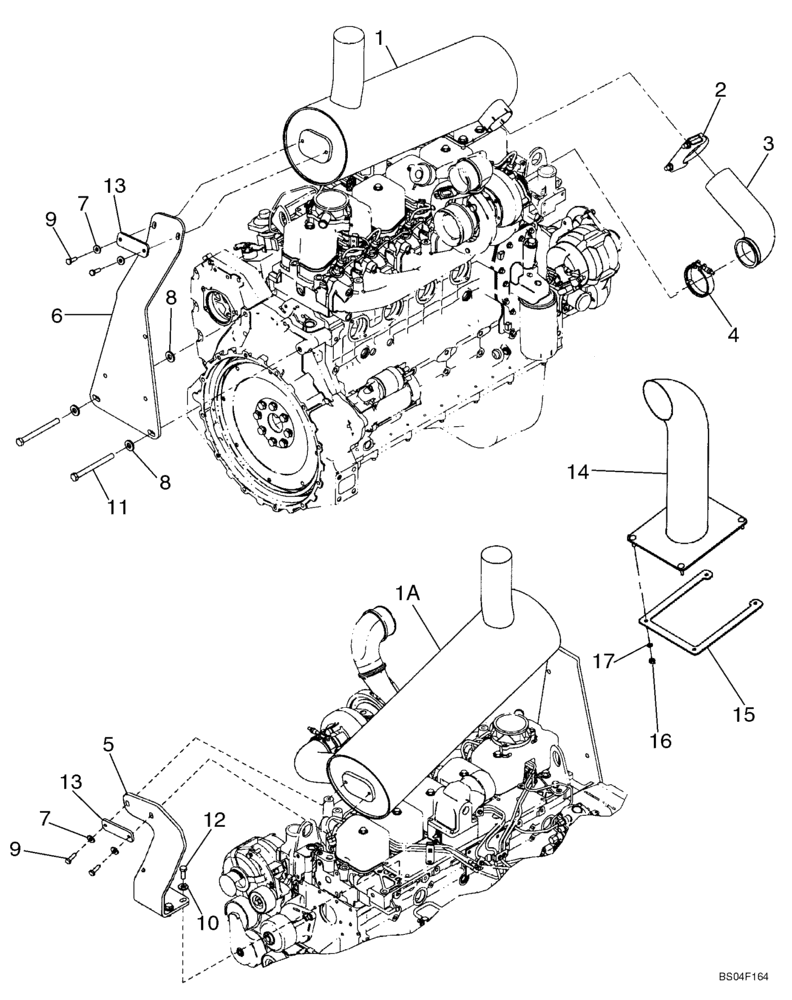

Запчасти Case 621D (02-13) - MUFFLER - EXHAUST SYSTEM - STANDARD/ASPIRATOR SPARK ARRESTER (02) - ENGINE

REF

INSTRUCTION

MOUNTING FOR STD & ASPIRATOR MUFFLERS; TIER II MODELS

1шт.

1

388283A1

MUFFLER

Standard

1шт.

1a

87451543

MUFFLER

Spark Arrestor & Aspirated

1шт.

2

299456A1

CLAMP,80.5mm ID

Muffler

1шт.

3

86983217

TUBE,76.20 mm OD x 212, 90 mm L

Exhaust

1шт.

4

J903652

CLAMP

V Band

1шт.

5

87409308

BRACKET

Muffler; Rear

1шт.

6

87452053

BRACKET

Muffler; Front

1шт.

7

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

Use With Spark Arrester

3шт.

11

827-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

2шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

13

87425898

PLATE

Muffler

2шт.

14

408195A1

PIPE, EXHAUST SYSTEM

Components Not Service Separately

1шт.

15

408196A1

PLATE

Exhaust Stack Backing

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Not Illustrated

4шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
