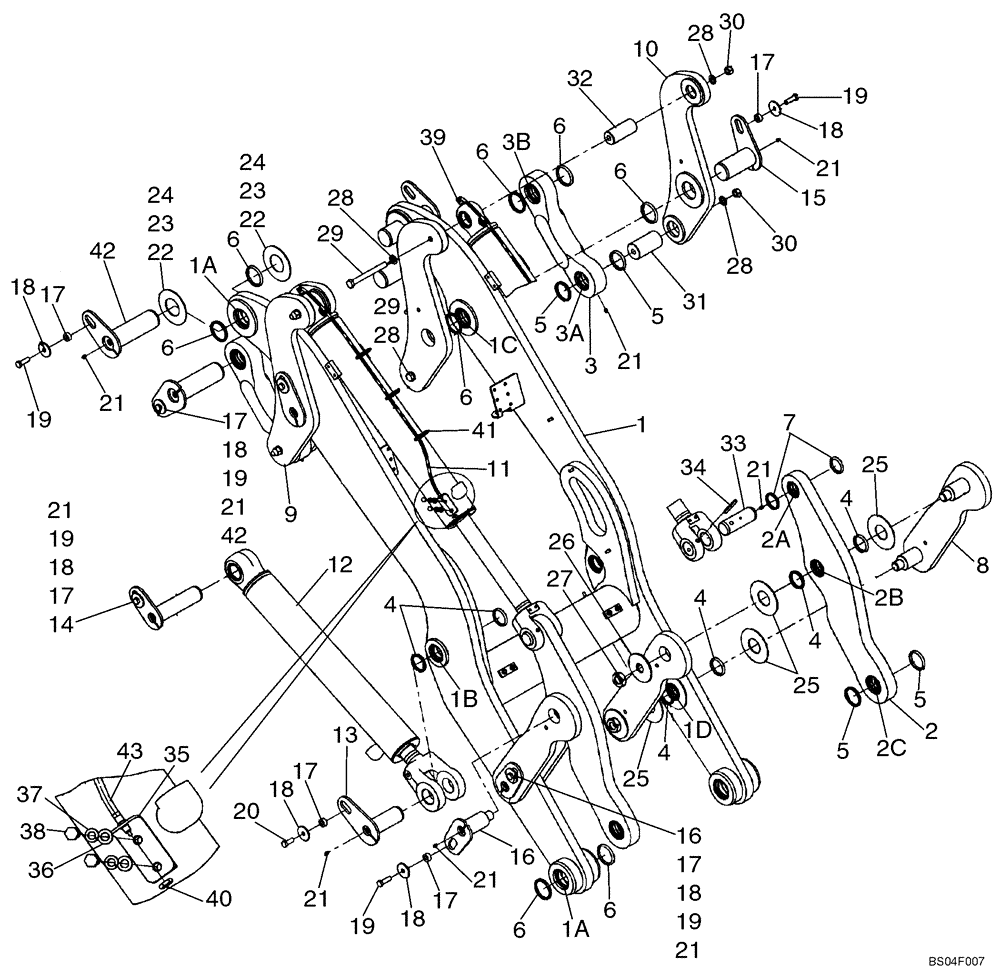

Запчасти Case 621D (09-06D) - FRAME - LOADER LIFT AND LINKAGE/ CYLINDERS XT- IF USED (09) - CHASSIS

REF

INSTRUCTION

XT LOADER

1шт.

1

87452366

ARM/LIFTING DEVICE

ARM Lift XT; Incl. 1A-1D

1шт.

1a

87434071

BUSHING

Lift Arm

6шт.

1b

358624A2

BUSHING

Lift Arm Pivot

2шт.

1c

379066A2

BUSHING

Lift Arm

2шт.

1d

379191A2

BUSHING

Lift Arm

2шт.

2

87452370

LINKAGE

LINK Dump XT; Incl. 2A-2C

2шт.

2a

87613427

BUSHING,57.46mm ID x 69.96mm OD x 34mm L

BUSHING, Dump Link; Replaces 369432A2

1шт.

2b

87613432

BUSHING,63.81mm ID x 76.31mm OD x 34mm L

BUSHING, Lift Arm; Replaces 379191A2

1шт.

2c

87617016

BUSHING

BUSHING, Dump Link; Replaces 87617016

1шт.

3

87445353

LINKAGE

Anchor XT; Incl. 3a, 3B

2шт.

3a

87613435

BUSHING,70.16mm ID x 82.66mm OD x 48mm L

Large, Anchor Link; Replaces 8500303

1шт.

3b

87613431

BUSHING,76.55mm ID x 89.99mm OD x 45mm L

Lift Arm; Replaces 379066A2

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Rod; 63.5

12шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Rod; 69.8

8шт.

6

D95148

WIPER SEAL

Rod; 76.2

16шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

Rod; 57.125

4шт.

8

87445354

LINKAGE

Guide XT

4шт.

9

87445355

LINKAGE

Bellcrank; Right Hand

2шт.

10

87445356

LINKAGE

Bellcrank; Left Hand

2шт.

11

87442555

BUCKET CYLINDER,Double Acting, 63.5mm Rod, 819.9mm Stroke

114 ID x 819.9 mm strk; Bucket Tilt; See Figure 08-

2шт.

12

87405374

CYLINDER ASSY.

114.3 ID x 787.6 mm strk; Lift; See Figure 08-22; Replaced By 87318060

2шт.

12

87318060

LIFT CYLINDER,Double Acting, 63.5mm Rod, 787.6mm Stroke

114.3 ID x 787.6 mm strk; Lift; See Figure 08-22A

2шт.

13

361133A2

PIN ASSY.

2шт.

14

361128A1

PIN

2шт.

15

379070A2

PIVOT PIN,76.2mm OD x 170.5mm L

Bellcrank

2шт.

16

379197A2

PIN,63.5mm OD x 158.1mm L

Guide Link

4шт.

17

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

18

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

20

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

22

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

77.6 ID 3.5thk

1шт.

23

441822A1

WASHER

77.6 ID 1.6thk

1шт.

24

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

Lift Arm

1шт.

25

116893A1

WASHER,65mm ID x 152mm OD x 3.5mm Thk

8шт.

26

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

4шт.

27

131-53

NUT,1 1/2"-12

4шт.

28

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

29

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

30

829-1420

NUT,M20, Cl 10

4шт.

31

8500311

PIN,69.85mm OD x 130.65mm L

Bellcrank; Anchor Side

2шт.

32

368775A1

PIN

Bellcrank; Cylinder Side

2шт.

33

368836A2

PIN,57.15mm OD x 165mm L

Tilt Cylinder

2шт.

34

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

35

87441374

BRACKET

Grease Hose

1шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

38

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

39

328082A1

ELBOW

1/8 PT

2шт.

40

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

6шт.

42

87441342

HEADED PIN,76.2mm OD x 253.5mm L

Lift Arm Pivot

4шт.

43

87444057

FLEXIBLE HOSE

Grease

2шт.
