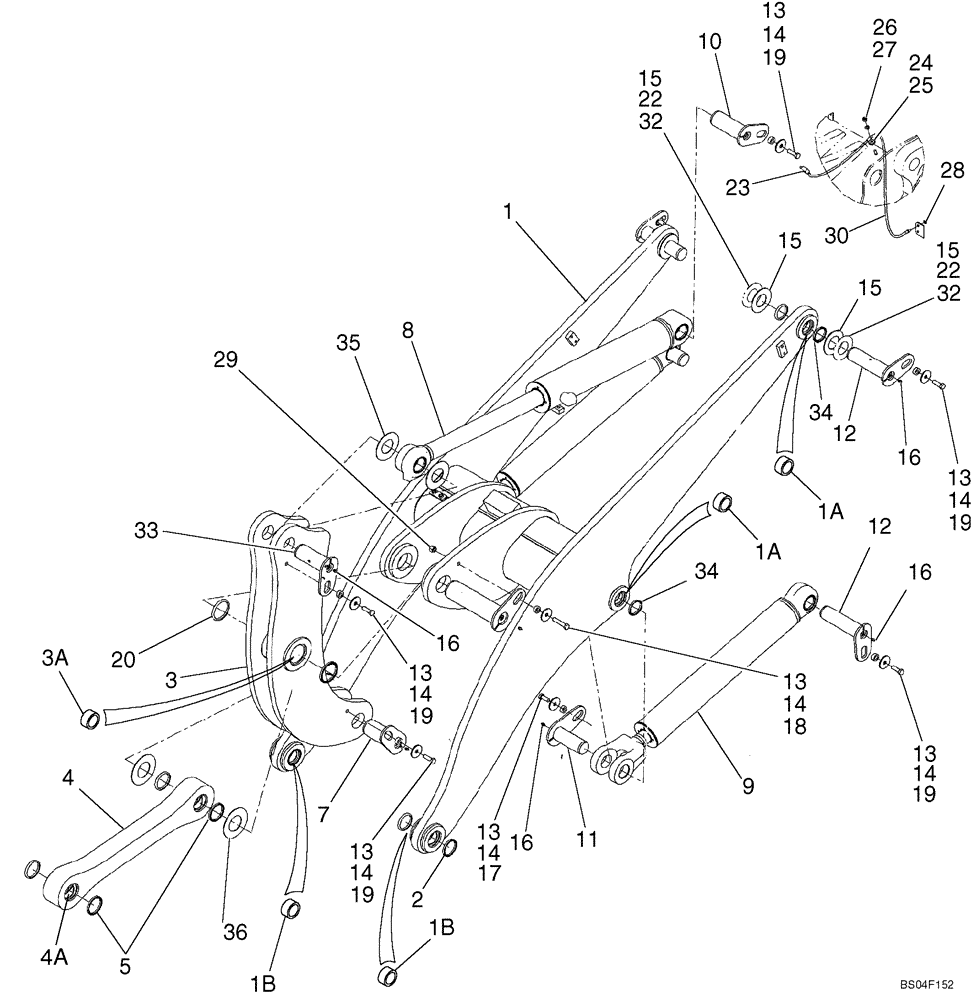

Запчасти Case 621D (09-06A) - FRAME - LOADER LIFT XR - IF USED (09) - CHASSIS

REF

INSTRUCTION

XR LOADER

1шт.

1

8606137

LIFT ARM

Loader Lift; Incl. 1A - 1B

1шт.

1a

358624A2

BUSHING

Lift Arm

4шт.

1b

358626A2

BUSHING,70.16mm ID x 82.66mm OD x 79mm L

Dump Link

2шт.

2

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

3

370789A3

ARM ASSY.

Bellcrank; Incl. 3A; Replaced By 87330150

1шт.

3

87330150

BELLCRANK

Bellcrank; Incl. 3A

1шт.

3a

87613429

BUSHING,89.21mm ID x 104.88mm OD x 81.9mm L

BUSHING, Bellcrank; Replaces 371883A1

2шт.

4

372960A2

LINK

Dump; Incl 4A

1шт.

4a

87613430

BUSHING,76.52mm ID x 89.99mm OD x 79mm L

BUSHING, Dump Link; Replaces 371885A2

2шт.

5

D95148

WIPER SEAL

4шт.

6

375328A1

PIN ASSY.

1шт.

7

375326A2

PIN ASSY.,76.2mm OD x 184mm L

1шт.

8

87405382

CYLINDER ASSY.

127 ID x 620 mm strk; Bucket Tilt; See Figure 08-30A

1шт.

87366695R

REMAN-HYD CYLINDER

621D S/N JEE0135501 & AFTER (1/03-), Reman for New P/N 87405382

1шт.

87366695C

CORE-HYD CYLINDER

Return Number

1шт.

9

87405374

CYLINDER ASSY.

114.3 ID x 787.6 mm strk; Lift; See Figure 08-22; Replaced By 87318060

2шт.

9

87318060

LIFT CYLINDER,Double Acting, 63.5mm Rod, 787.6mm Stroke

114.3 ID x 787.6 mm strk; Lift; See Figure 08-22A

2шт.

10

375330A1

PIN ASSY.,69.85mm OD x 201.5mm L

1шт.

11

361133A2

PIN ASSY.

2шт.

12

361128A1

PIN

4шт.

13

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

14

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

15

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

Hardened

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

18

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.

20

S92653

WIPER

2шт.

22

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

Hardened

1шт.

23

328082A1

ELBOW

1/8 PT

1шт.

24

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

29

832-10416

NUT,M16 x 2, Cl 8

1шт.

30

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in); Incl. 30A

1шт.

30a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Not Illustrated

1шт.

32

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

Hardened

1шт.

33

361139A2

PIN ASSY.,69.8mm OD x 182mm L

1шт.

34

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

8шт.

35

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71,3 ID

2шт.

36

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

2шт.
