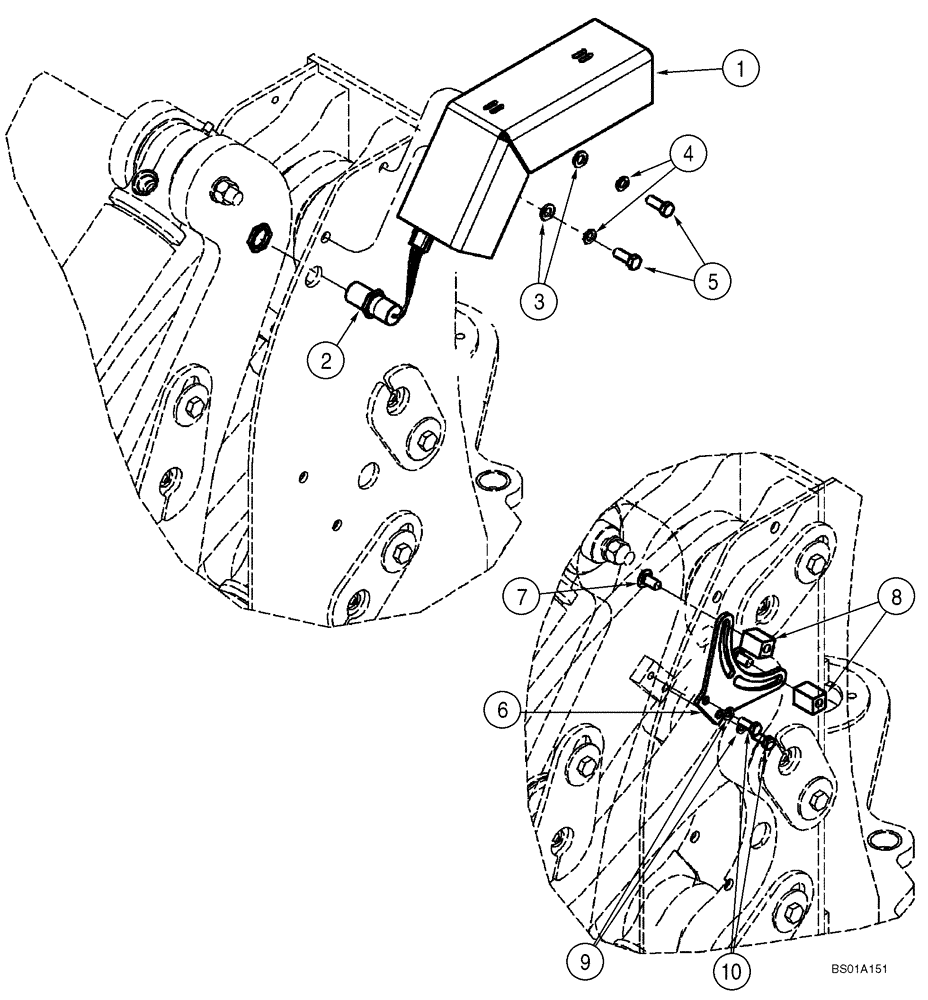

Запчасти Case 621D (09-04) - CONTROLS - BUCKET HEIGHT RETURN-TO-TRANSPORT (XT) (09) - CHASSIS

REF

INSTRUCTION

XT LOADER

1шт.

1

379148A1

COVER

Proximity Switch

1шт.

2

1546498C1

SWITCH

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

892-11012

LOCK WASHER,M12

2шт.

5

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

6

379149A2

MOUNTING PLATE

Mounting

1шт.

7

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

8

379638A2

BLOCK

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.
