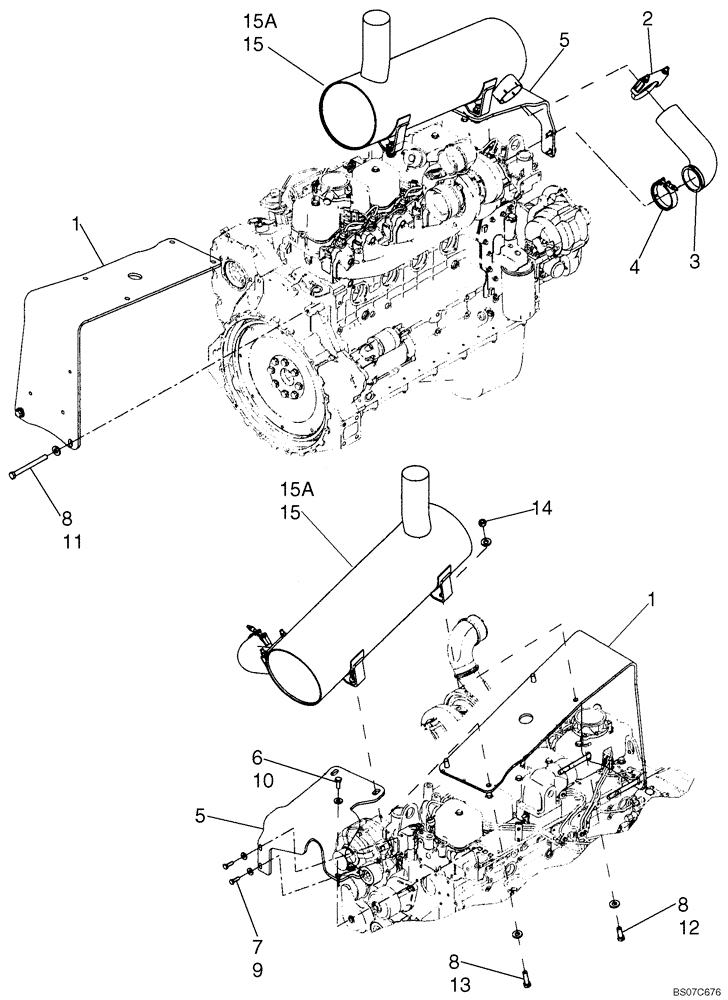

Запчасти Case 621D (02-12A) - MUFFLER - EXHAUST SYSTEM - IF USED (02) - ENGINE

1

87344886

BRACKET, SUPPORTING

1шт.

2

299456A1

CLAMP,80.5mm ID

1шт.

3

86983217

TUBE,76.20 mm OD x 212, 90 mm L

1шт.

4

J903652

CLAMP

1шт.

5

87344888

BRACKET, SUPPORTING

Muffler

1шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

Use With Spark Arrester

2шт.

7

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

10шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

11

827-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

2шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

14

829-1412

NUT,M12, Cl 10.9

4шт.

15

87444405

MUFFLER

Standard

1шт.

15a

87451542

MUFFLER

Spark Arrestor & Aspirated

1шт.
